>> Echipamente de incalzire >> Centrale termice murale >> Junior 24/28Kw bitermica

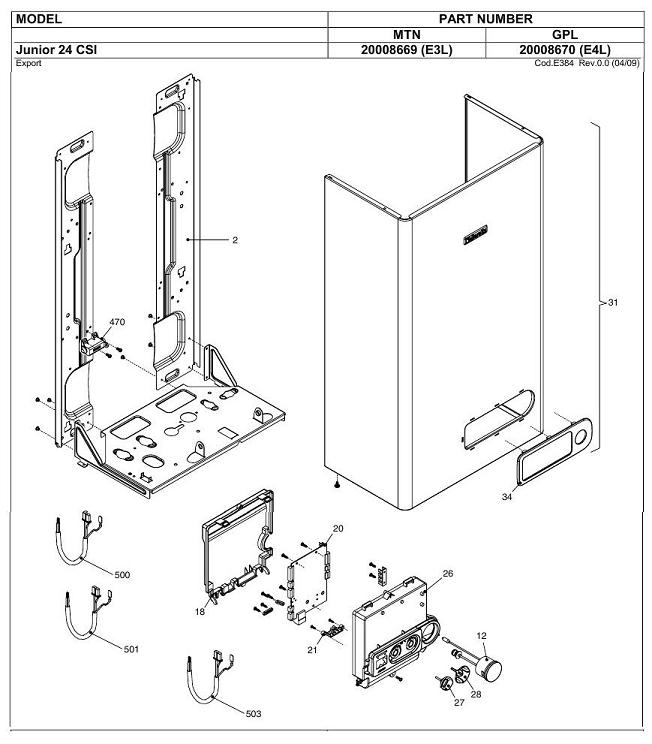

Desen CENTRALA JUNIOR 24CSI BITERMIC Pagina 01
Poz. Cod piesa Denumire piesa Lei fara TVA
002 20005591 Cadrul centralei 0.00
012 20011061 Manometru agent termic 0.00
018 20005574 Protectie placa electronica 0.00
020 20005569 Placa electronica 0.00
021 20013352 LED-uri diagnoza 0.00
026 20013351 Panou de control 0.00
027 20005579 Buton mod de lucru 0.00
028 20005575 Buton reglaj temperatura 0.00
031 20011046 Panou frontal centrala 0.00
034 20005583 Rama panou de comanda 0.00
470 R10026031 Transformator de aprindere TR6 0.00
500 20005571 Cablu tensiune joasa 0.00
501 20005572 Cablu 220v 0.00
503 R1547 Cablu 0.00

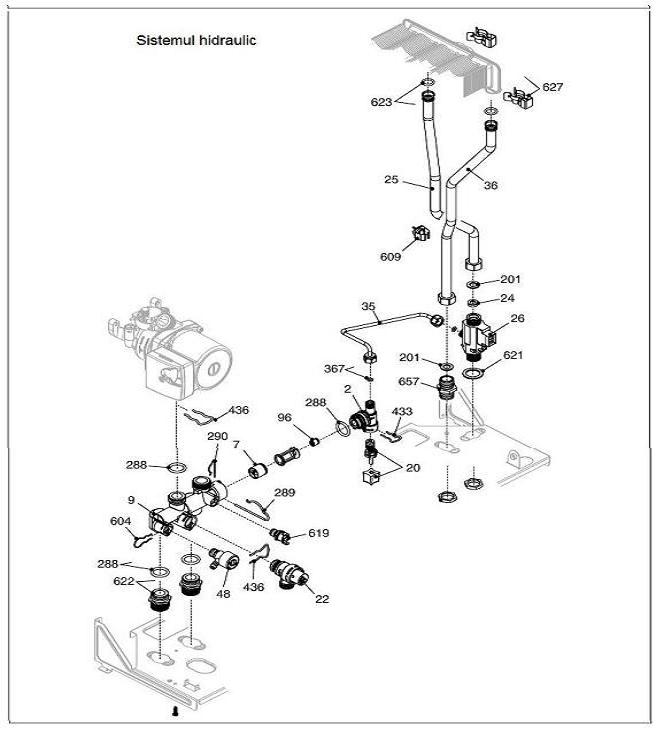

Desen CENTRALA JUNIOR 24CSI BITERMIC Pagina 02
Poz. Cod piesa Denumire piesa Lei fara TVA
002 20005581 Grupul hidraulic 0.00
007 20007783 By-pass 0.00
009 20005568 Distribuitor 0.00
020 R10025060 Robinet de umplere 0.00
022 R10025055 Supapa de siguranta 0.00
024 R10024987 Limitator de debit 0.00
025 20005556 Teava 0.00
026 R10022752 Fluxostat 0.00
035 20005567 Teava 0.00
036 20005557 Teava 0.00
048 20000533 Robinet de scurgere 0.00
096 R10021625 Supapa de sens 0.00
201 R5026 Garnitura 0.00
288 R6898 Inel etansarea 0.00
289 R2223 Clips de prindere 0.00
290 R2165 Clips de prindere 0.00
367 R8542 O ring 0.00
433 R10024986 Clips de prindere 0.00
436 R10025062 Clips de prindere 0.00
604 20000539 Clips de prindere 0.00
609 20000713 Sonda NTC pt ACM 0.00
619 20003181 Presostat apa 0.00
621 R5038 Garnitura 0.00
622 20005565 Niplu 0.00
623 20005566 O ring 0.00
627 20005546 Clips pt.conector schimbator 0.00
657 20011043 Niplu 0.00

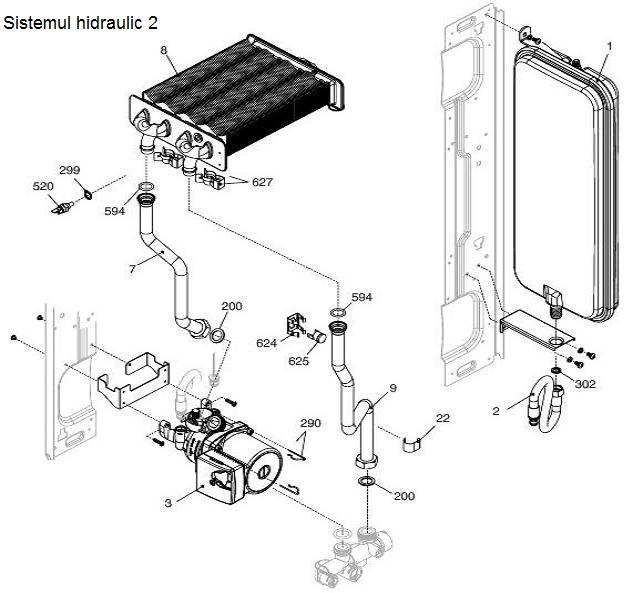

Desen CENTRALA JUNIOR 24CSI BITERMIC Pagina 03
Poz. Cod piesa Denumire piesa Lei fara TVA
001 20005563 Vas expansiune -7l 0.00
002 R10028603 Teava 0.00
003 20005582 Pompa 0.00
007 20005559 Teava 0.00
008 20005544 Schimbator de caldura 0.00
009 20005558 Teava 0.00
022 R3412 Clips 0.00
200 R5023 Garnitura 0.00
290 R2165 Clips de prindere 0.00
299 R10022726 Garnitura 0.00
302 R5025 Garnitura 0.00
520 20004832 Senzor NTC 0.00
594 20000131 O ring 0.00
624 R5472 Clips 0.00
625 20005585 Termostat de siguranta 0.00
627 20005546 Clips pt.conector schimbator 0.00

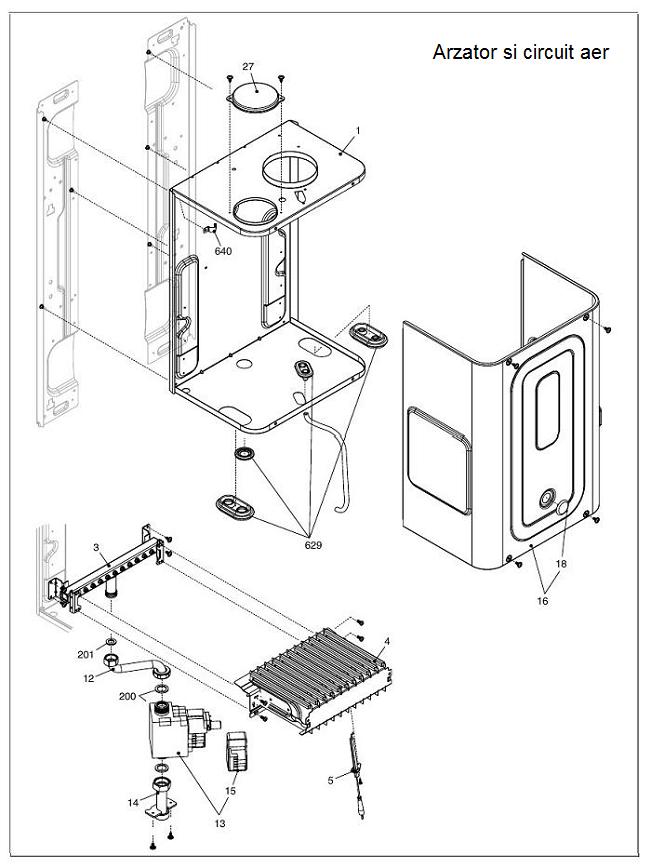

Desen CENTRALA JUNIOR 24CSI BITERMIC Pagina 04
Poz. Cod piesa Denumire piesa Lei fara TVA
001 20011047 Camera de aer 0.00
003 20005584 Colector 0.00
004 20005551 Arzator gaz natural 0.00
005 R10025985 Electrod de aprindere 0.00
012 20005554 Teava gaz 0.00
013 20007784 Vana de gaz 0.00
014 20005553 Teava gaz 0.00
015 R10020838 Bobina vana de gaz 0.00
016 20005594 Capac camera de combustie 0.00
018 2005550 Vizor 0.00
027 20005586 Capac circuit aer 0.00
200 R5023 Garnitura 0.00
201 R5026 Garnitura 0.00
629 20005595 Presetupe cabluri electrice 0.00
640 20011042 Clips 0.00

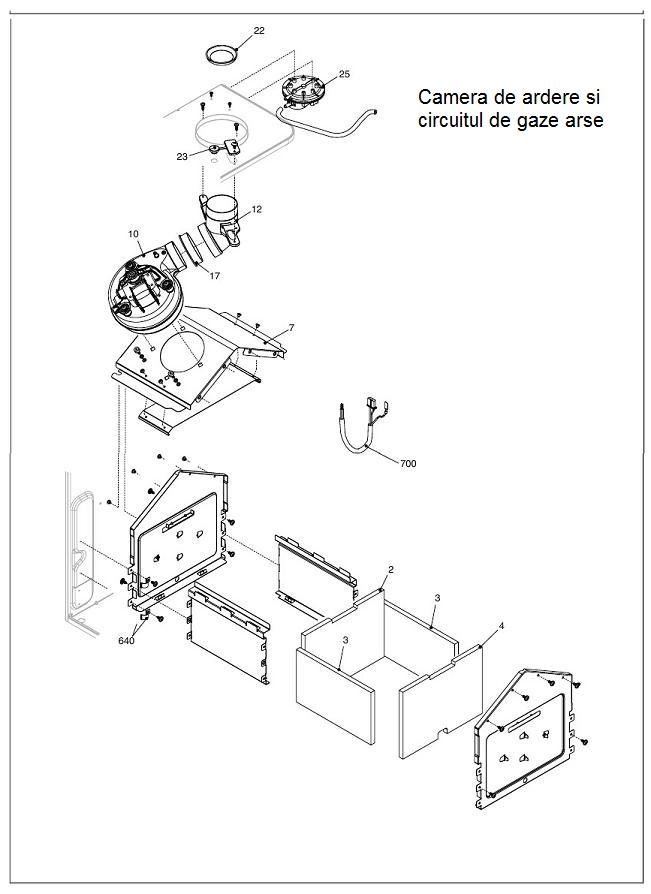

Desen CENTRALA JUNIOR 24CSI BITERMIC Pagina 05
Poz. Cod piesa Denumire piesa Lei fara TVA
003 20005562 Izolatie laterala camera ardere 0.00
004 20005560 Izolatie anterioara camera ardere 0.00
007 20005596 Capac superior camera ardere 0.00
010 20005543 Ventilator 0.00
012 20011048 Conector circuit fum 0.00
017 20005552 Garnitura 0.00
022 R10021730 Flansa 0.00
022 R10027845 Flansa 0.00
023 20005549 ??Plug?? 0.00
025 R10023908 Presostat aer 0.00
640 20011042 Clips 0.00
700 20011044 Cablaj electric 0.00
