>> tratamentul apei >> statii dedurizare >> aquamatic >> twin 30-100 - 2.0-5.2mc/h

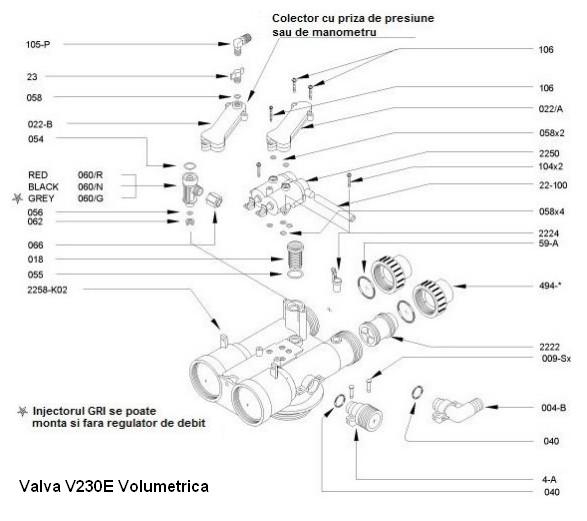

desen explodat statie dedur. twin s 350 - pagina 1 | |||
|---|---|---|---|
| |||
| poz. | cod piesa | denumire piesa | 0 |

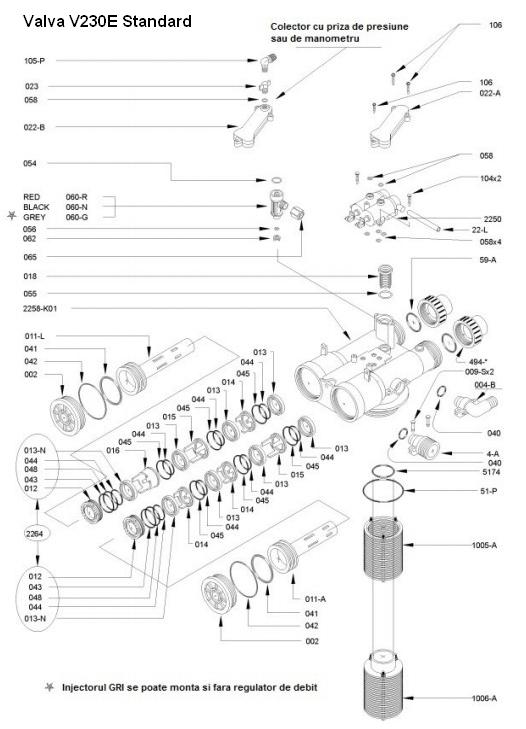

desen explodat statie dedur. twin s 350 - pagina 2 | |||
| |||
| poz. | cod piesa | denumire piesa | 0 |
desen explodat statie dedur. twin s 350 - pagina 3 | |||
| |||
| poz. | cod piesa | denumire piesa | 0 |
desen explodat statie dedur. twin s 350 - pagina 4 | |||
| |||
| poz. | cod piesa | denumire piesa | 0 |
desen explodat statie dedur. twin s 350 - pagina 5 | |||
| |||
| poz. | cod piesa | denumire piesa | 0 |
desen explodat statie dedur. twin s 350 - pagina 6 | |||
| |||
| poz. | cod piesa | denumire piesa | 0 |

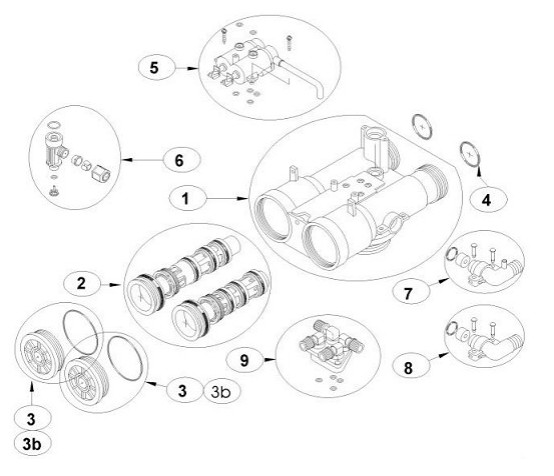

desen explodat statie dedur. twin s 350 - pagina 7 | |||
| |||
| poz. | cod piesa | denumire piesa | 0 |
| 1 | 2258-k01 | kit corp valva 230 | 0.00 |
| 1 | 2258-k02 | kit corp valva 230 volum | 0.00 |
| 1 | 2258-k03 | kit corp valva 230 demineralizare | 0.00 |
| 2 | 2230 | kit piston | 0 |
| 3 | 1916-a | capac piston | 0.00 |
| 3b | 1916-b | capac piston cu gaura filetata 1/8" | 0.00 |
| 4 | 59-a | o-ring exterior intrare-iesire | 0.00 |
| 5 | 2250 | ansamblu pilot | 0 |
| 6 | 2231-r | injector rosu | 0.00 |
| 6 | 2231-n | injector negru | 0.00 |
| 6 | 2231-g | injector gri | 0.00 |
| 7 | 2249-a | racord de drenare | 0.00 |
| 7a | 2249-c | racord inchis de drenare | 0.00 |
| 8 | 2252 | ansamblu racorduri mobile | 0 |
|
| |||
| poz. | cod piesa | denumire piesa | 0 |
| 1 | 1916-a-05 | capac valva cu o-ring | 0.00 |
| 2 | 1916-b-05 | capac valva cu o-ring si gaura 1/8" | 0.00 |

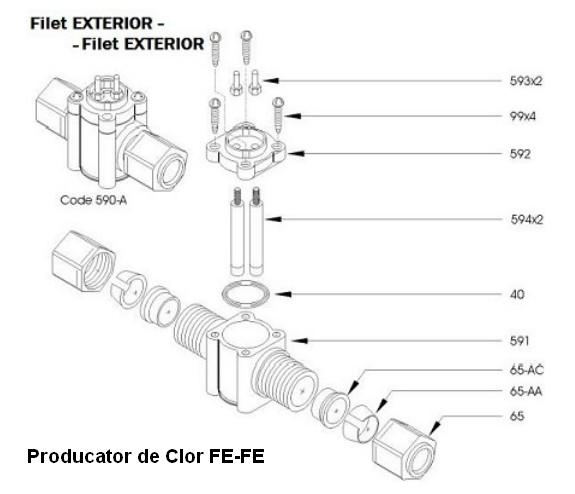

| 3 | 590-a | producator de clor fe-fe | 0.00 |

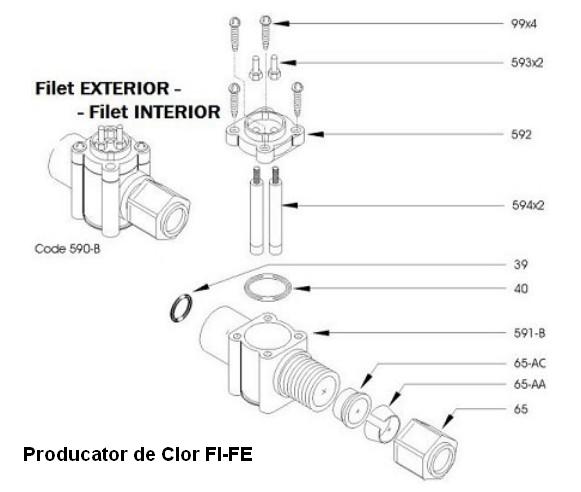

| 4 | 590-b | producator de clor fi-fe | 0.00 |
| 5 | 494-b | kit racordare pvc 2"x1/4" | 0.00 |
| 6 | 494-c | kit racordare pvc 2" | 0.00 |
| 7 | 494-f | kit racordare alama | 0.00 |
| 8 | 494-s | kit racordare pva 2"-1 1/4" | 0.00 |
| 9 | 2222 | set corp turbina | 0 |
| 10 | 2296 | contor apa cu turbina 1 1/2" | 0 |
| 11 | 2163 | senzor | 0 |
| 12 | 2162-a | valva siguranta anticoroziune negru (naoh) | 0.00 |
| 13 | 2162-k | valva siguranta anti-acid, rosu (hcl) | 0.00 |
| 14 | 2216 | element de umplere saramura cu temporizare | 0 |
| 15 | 2161 | pin regulator | 0 |
| 16 | 2238 | kit intretinere intern v132 | 0 |
