>> echipamente de incalzire >> centrale in condensare >> max. 123kw (50/30°c) >> futuria n50

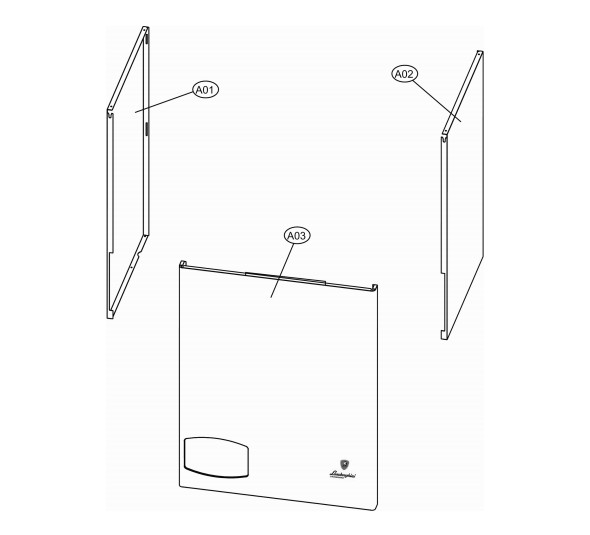

desen tav1447_p1 centr futuria n 50 condensare pagina 01
poz. cod piesa denumire piesa lei fara tva
a01 f39836530 kit fianco sin. (3110g320) 0.00
a02 f39836540 kit fianco dex. (3110g300) 0.00
a03 f39836610 kit pannello a. "lam"(37045950) 0.00

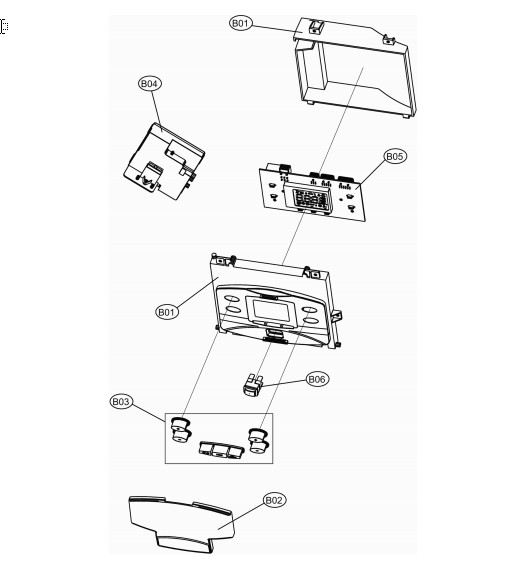

desen tav1447_p2 centr futuria n 50 condensare pagina 02
poz. cod piesa denumire piesa lei fara tva
b01 f39829300 kit scatola el."fol"(35013110) 0.00
b02 f39829310 kit portellino fumee(35003100) 0.00
b03 f39829320 kit membrane tasti sr.m7l0 0.00
b04 f39829330 kit centralina (36508280) 657.04
b05 f39829340 kit scheda el.dsp12a(38322531) 657.47
b06 f39811480 kit 5 pulsanti (36100460) 211.11

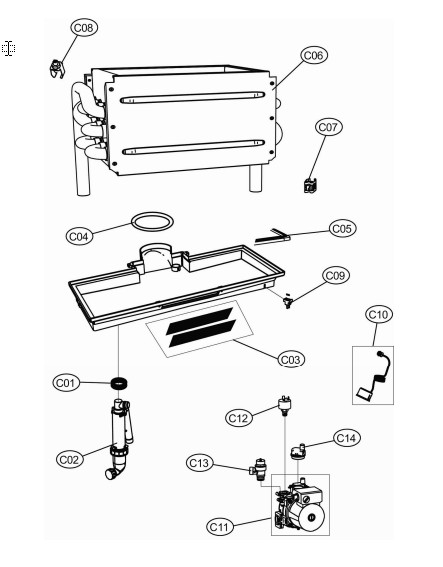

desen tav1447_p3 centr futuria n 50 condensare pagina 03
poz. cod piesa denumire piesa lei fara tva
c01 f39807860 kit guarniz.sifone (35101700) 0.00
c02 f39829160 kit sifone sr.m7l0 (35102610) 0.00
c03 f39806570 kit porta vasca (32913090) 0.00
c04 f39829170 kit guarn.usc.fumi (35102960) 0.00
c05 f39829180 kit guarn.vasca rc. (35101501) 0.00
c06 f39829190 kit pacco lam. (37405250) 0.00
c07 f39810220 kit sonda temp.risc.(36200540) 0.00
c08 f39821530 kit sonda temp.dp. (36200720) 0.00
c09 f39810340 kit sonda fumi (36200740) 0.00
c10 f39836560 kit idrometro 0-8bar(36402330) 0.00
c11 f39829260 kit pompa frsl15/7 (36600240) 802.00
c12 f39818260 kit pressost.h2o (39404710) 0.00
c13 f39829270 kit valv.sic.6bar (36902400) 0.00
c14 f39818220 kit v.aria (39404380-39404730) 0.00

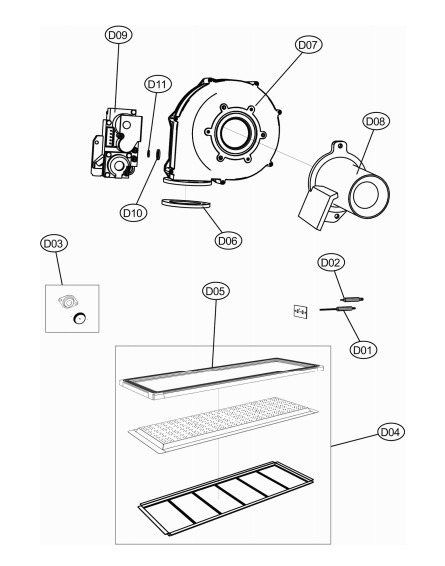

desen tav1447_p4 centr futuria n 50 condensare pagina 04
poz. cod piesa denumire piesa lei fara tva
d01 f39806200 kit elettrodo rivel.(36702635) 0.00
d02 f39810440 kit elettrodo acc. (36702791) 0.00
d03 f39815100 kit 5 vetrini spia (35320830) 0.00
d04 f39814180 kit bruc.ceram. (37605790) 0.00
d05 f39835890 kit guarn.cop.bruc. (35101482) 0.00
d06 f39829200 kit 5 guarn.ventil. (35103100) 0.00
d07 f39829210 kit ventil.sr.m7l0 (36600250) 1259.00
d08 f39829220 kit venturi ventil. (36600260) 0.00
d09 f39836590 kit valv.gas vk4115v(36800750) 510.00
d10 f39836570 kit 5 diafr.di.7,1 (34011270) 0.00
d11 f39836580 kit 5 diafr.di.4,9 (34011260) 0.00
