>> echipamente de incalzire >> centrale in condensare >> max. 123kw (50/30°c) >> futuria n80 si n125

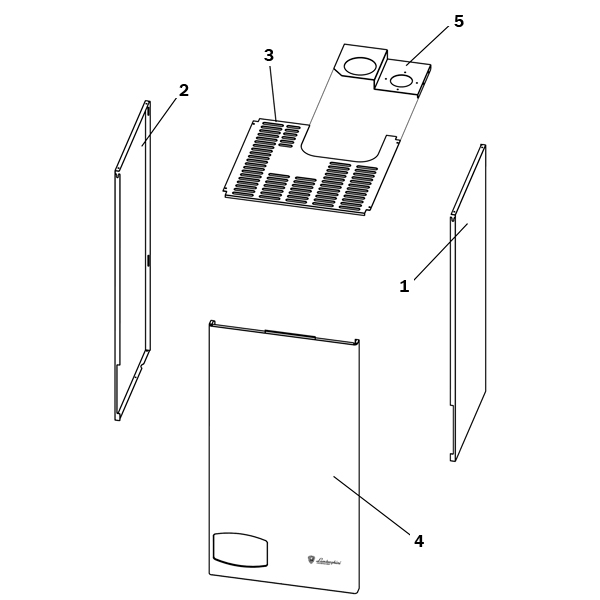

desen tav1418_p1 centr futuria n125 condensare pagina 01
poz. cod piesa denumire piesa 0
001 f39830070 kit fianco dex. (3110d430) 0
002 f39830080 kit fianco sin. (3110d450) 0
003 f39830090 kit pannello chius. (3110d751) 0
004 f39832830 kit pannello a."lam"(3110c532) 0
005 f39830110 kit lam.supp.tronch.(3110d471) 0.00

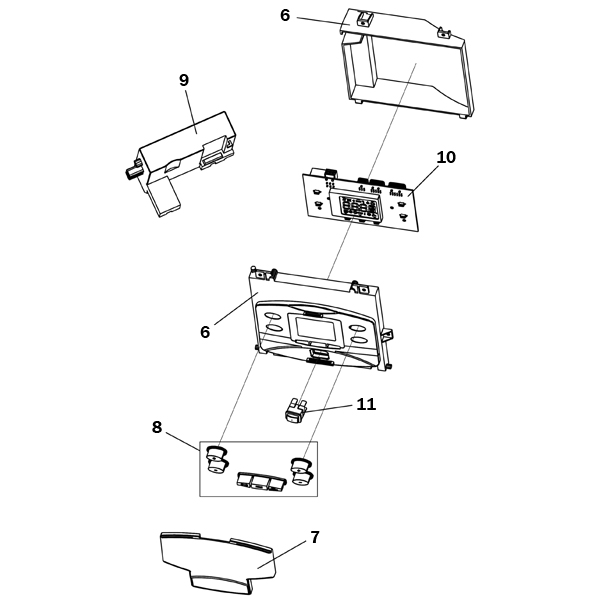

desen tav1418_p2 centr futuria n125 condensare pagina 02
poz. cod piesa denumire piesa lei fara tva
006 f39829300 kit scatola el."fol"(35013110) 0.00
007 f39829310 kit portellino fumee(35003100) 0.00
008 f39829320 kit membrane tasti sr.m7l0 0.00
009 f39830170 kit centralina (36508290) 967.07
010 f39829340 kit scheda el.dsp12 (38322530) 657.47
011 f39811480 kit 5 pulsanti (36100460) 211.11

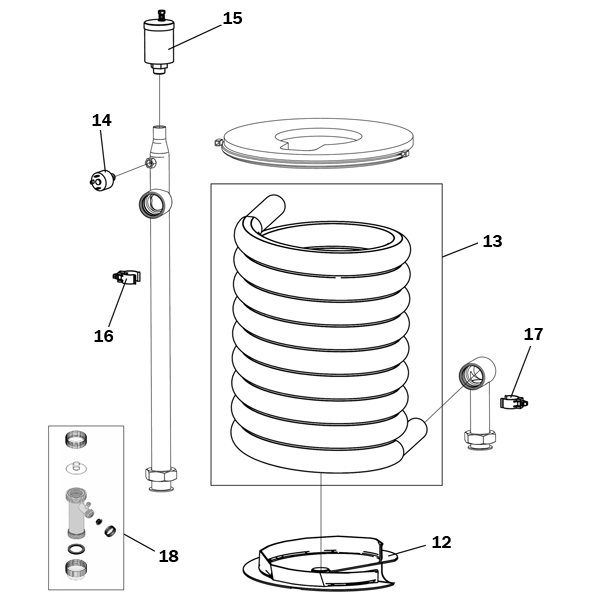

desen tav1418_p3 centr futuria n125 condensare pagina 03
poz. cod piesa denumire piesa lei fara tva
012 f39830200 kit fondo ch.scamb. (35013122) 0.00
013 f39830330 kit scamb.wieland (32003010) 0.00
014 f39806180 kit pressostato h2o (36401930) 94.86
015 f39830220 kit valv.aria 1/2" (36902210) 0.00
016 f39830150 kit sonda temp. (36200770) 82.31
017 f39830160 kit sonda temp.dp. (36200780) 84.17
018 f39815090 kit sifone (35102170) 150.20

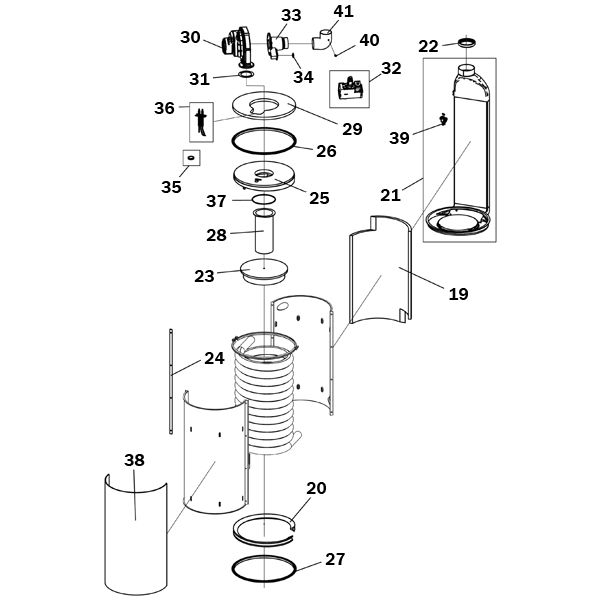

desen tav1418_p4 centr futuria n125 condensare pagina 04
poz. cod piesa denumire piesa lei fara tva
019 f39830310 kit isol.ades.post. (35303650) 0.00
020 f39830210 kit prof.ten.fumi (35103280) 0.00
021 f39830180 kit vasca cond. (35013180) 0.00
022 f39829170 kit guarn.usc.fumi (35102960) 40.92
023 f39830340 kit isol.centr.fasc.(35302770) 0.00
024 f39830360 kit isol.later.fasc.(35302800) 0.00
025 f39830230 kit isol.porta isp. (35302732) 0.00
026 f39830240 kit 5 guarn.porta br(35103090) 0.00
027 f39830250 kit guarn.prof.l1020(35103221) 0.00
028 f39830480 kit bruc.tubol.l226 (32200050) 0.00
029 f39830260 kit 5 dischi isol. (35304110) 0.00
030 f39830380 kit ventil.200w (36600290) 0.00
031 f39830270 kit 5 guarn.ventil. (35103111) 0.00
032 f39830400 kit v/gas vr4615 vb (36800860) 903.00
033 f39830420 kit venturi 125kw (36600310) 0.00
034 f39830440 kit ugello gas m. (32203820) 0.00
035 f39828510 kit 5 vetrini spia (35321380) 0.00
036 f39830280 kit gruppo elettrodi(36700030) 0.00
037 f39830290 kit 5 guarn.or d.140(35103130) 0.00
038 f39830460 kit isol.ades.anter.(35303630) 0.00
039 f39810340 kit sonda fumi (36200740) 66.96
040 f39830120 kit 5 prese press. (34011060) 0.00
041 f39830140 kit tubo vent.-fumi (35103151) 0.00
