>> echipamente de incalzire >> centrale in condensare >> max. 246kw (50/30°c) >> futuria power

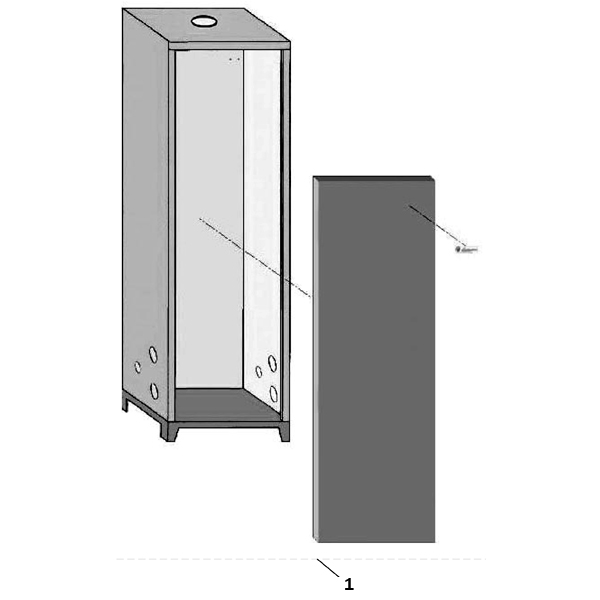

desen tav1419_p1 futuria power 80 gn/gpl pagina 01
poz. cod piesa denumire piesa 0
001 f39833100 kit armadio "lam"(37045580) 0.00

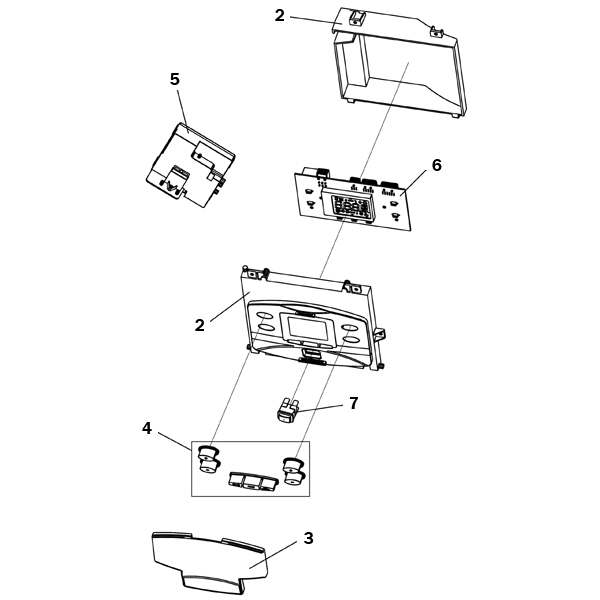

desen tav1419_p2 futuria power 80 gn/gpl pagina 02
poz. cod piesa denumire piesa lei fara tva
002 f39829300 kit scatola el."fol"(35013110) 0.00
003 f39829310 kit portellino fumee(35003100) 0.00
004 f39829320 kit membrane tasti sr.m7l0 0.00
005 f39829330 kit centralina (36508280) 657.04
006 f39829340 kit scheda el.dsp12 (38322530) 657.47
007 f39811480 kit 5 pulsanti (36100460) 211.11

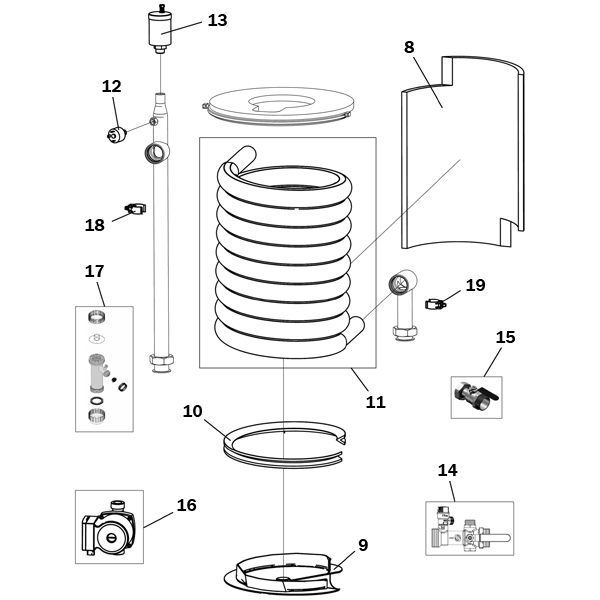

desen tav1419_p3 futuria power 80 gn/gpl pagina 03
poz. cod piesa denumire piesa lei fara tva
008 f39830300 kit isol.ades.post. (35303640) 0.00
009 f39830200 kit fondo ch.scamb. (35013122) 0.00
010 f39830210 kit prof.ten.fumi (35103280) 0.00
011 f39830320 kit scamb.wieland (32003000) 0.00
012 f39806180 kit pressostato h2o (36401930) 94.86
013 f39830220 kit valv.aria 1/2" (36902210) 0.00
014 f39833040 kit rub.3vie m.1"1/2(36902490) 0.00
015 f39833050 kit rub.mf.1"1/2 (36902480) 0.00
016 f39833060 kit pompa ups 25-80 (36600420) 0.00
017 f39815090 kit sifone (35102170) 150.20
018 f39830150 kit sonda temp. (36200770) 82.31
019 f39830160 kit sonda temp.dp. (36200780) 84.17

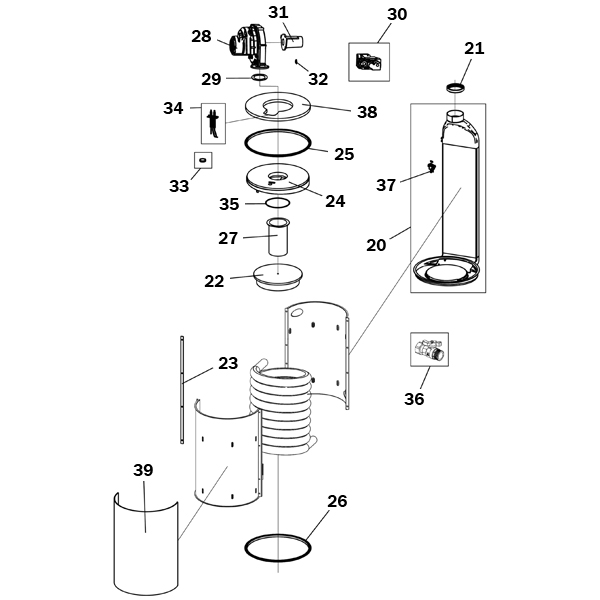

desen tav1419_p4 futuria power 80 gn/gpl pagina 04
poz. cod piesa denumire piesa lei fara tva
020 f39830180 kit vasca cond. (35013180) 0.00
021 f39829170 kit guarn.usc.fumi (35102960) 40.92
022 f39830340 kit isol.centr.fasc.(35302770) 0.00
023 f39830350 kit isol.later.fasc.(35302810) 0.00
024 f39830230 kit isol.porta isp. (35302732) 0.00
025 f39830240 kit 5 guarn.porta br(35103090) 0.00
026 f39830250 kit guarn.prof.l1020(35103221) 0.00
027 f39830470 kit bruc.tubol.l191 (32200040) 0.00
028 f39830370 kit ventil.135w (36600280) 0.00
029 f39830270 kit 5 guarn.ventil. (35103111) 0.00
030 f39830390 kit v/gas vk4115 vb (36800850) 0.00
031 f39830410 kit venturi 80kw (36600300) 0.00
032 f39830430 kit 10 diafr.di.8.5 (34014640) 0.00
033 f39828510 kit 5 vetrini spia (35321380) 0.00
034 f39830280 kit gruppo elettrodi(36700030) 0.00
035 f39830290 kit 5 guarn.or d.140(35103130) 0.00
036 f39833070 kit rub.gas mf.1" (36902500) 0.00
037 f39810340 kit sonda fumi (36200740) 66.96
038 f39830260 kit 5 dischi isol. (35304110) 0.00
039 f39830450 kit isol.ades.anter.(35303620) 0.00
