>> echipamente de incalzire >> centrale in condensare >> condensare si solar >> futuria solar 17 kw

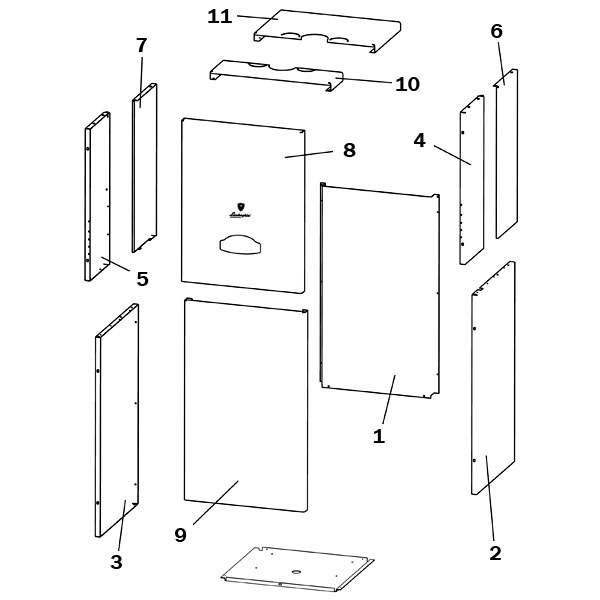

desen tav1440_p1 centr futuria solar 180 gn pagina 01
poz. cod piesa denumire piesa 0
001 f39834700 kit parete post. (3110f700) 0
002 f39834710 kit fianco inf.dex. (3110f720) 0
003 f39834720 kit fianco inf.sin. (3110f740) 0
004 f39834730 kit fianco sup.a.dx.(3110f760) 0
005 f39834740 kit fianco sup.a.sx.(3110f780) 0
006 f39834910 kit fianco sup.p.dx.(3110f800) 0
007 f39834920 kit fianco sup.p.sx.(3110f820) 0
008 PF39835420 KIT PANN.SUP.A."LAM"(3110F940) / KIT PANN. SUP. A. "LAM" (3110F940) 668.50
009 f39834940 kit pannello inf.a. (3110f860) 0
010 f39834950 kit coperchio ant. (3110f880) 0
011 f39834960 kit coperchio post. (3110f900) 0.00

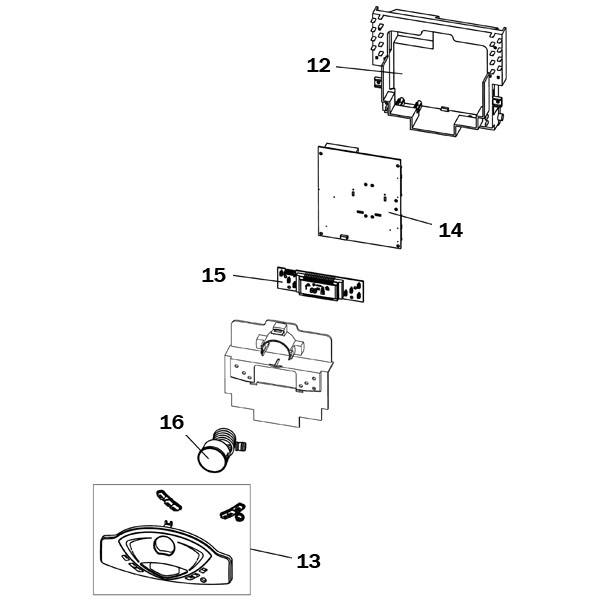

desen tav1440_p2 centr futuria solar 180 gn pagina 02
poz. cod piesa denumire piesa lei fara tva
012 f39834980 kit scatola el."lam"(35013850) 0.00
013 f39834990 kit mascherina "lam"(35013580) 0.00
014 f39835000 kit centralina el. (36508330) 849.25
015 f39835010 kit scheda el.dsp10 (38323580) 278.21
016 f39818210 kit idrometro (36402070) 74.40

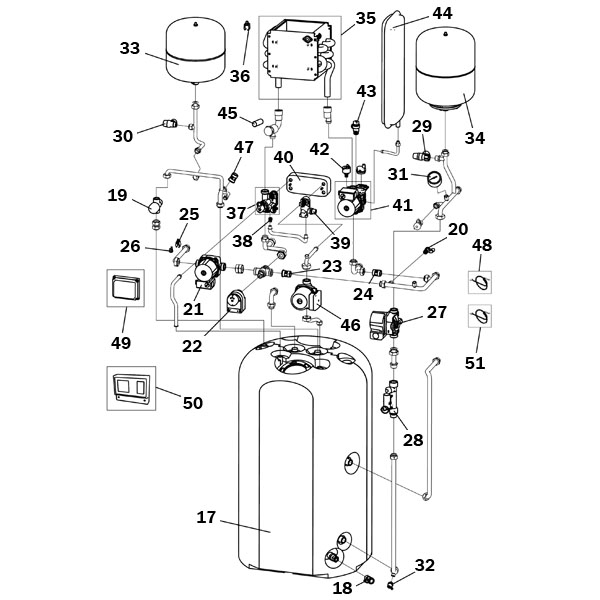

desen tav1440_p3 centr futuria solar 180 gn pagina 03
poz. cod piesa denumire piesa lei fara tva
017 f39834690 kit boiler solar (37704970) 0.00
018 f39809010 kit rubin.1/2" (36900700) 53.94
019 f39834750 kit valv.3v red sun (36902640) 0.00
020 f39808980 kit rub.3/8" tp.5014(36901470) 65.57
021 f39817270 kit pompa (36601471) 604.58
022 f39812970 kit motore valv.3v. (36902040) 0.00
023 f39815040 kit valv.n/r 034-r (36900390) 75.80
024 f398d4700 kit valv.n/r.3/4"lej(36901500) 0.00
025 f39810220 kit sonda temp.risc.(36200540) 48.36
026 f39823060 kit tst.c.arg.60¢c (36402270) 0.00
027 f39834760 kit pompa solare (36600330) 0.00
028 f39834770 kit flussom.solare (36402320) 0.00
029 f39834780 kit v/sic.1/2"f 6bar(36902660) 0.00
030 f39809950 kit valv.sic.9bar (36900460) 0.00
031 f39834790 kit idrom.0-8bar (36400690) 0.00
032 f39810320 kit rubin.scarico (36901630) 32.09
033 f39834800 kit vaso esp.12lt. (36800870) 0.00
034 f39834810 kit vaso esp.18lt. (36800880) 0.00
035 f39834010 kit pacco lam. (37404774) 0.00
036 f39821530 kit sonda temp.dp. (36200720) 63.24
037 f39820441 kit valv.3vie (36902240) 413.66
038 f39818790 kit 10 valv.n/r. (36902190) 189.26
039 f39830560 kit racc.scamb.l.r. (36902250) 64.17
040 f39820910 kit scambiatore 16p.(37404400) 0.00
041 f39818450 kit pompa ao/fx3fpl (36600100) 687.57
042 f39818260 kit pressost.h2o (39404710) 61.85
043 f39818270 kit valv.sic. (39404720) 51.15
044 f39812140 kit vaso esp.8lt. (36800410) 291.11
045 f39820460 kit 5 filtri gr.mand(34014301) 53.01
046 f39818760 kit pompa (36600081) 0.00
047 f39811270 kit valv.rit.3/4" (36901970) 60.45
048 f39822020 kit sonda so10032 (38319330) 0.00
049 f39834830 kit centralina dbm26(36508740) 0.00
050 f39834890 kit centralina "fz4"(36508750) 0.00
051 f39834900 kit sonda pt1000 (3900b580) 0.00

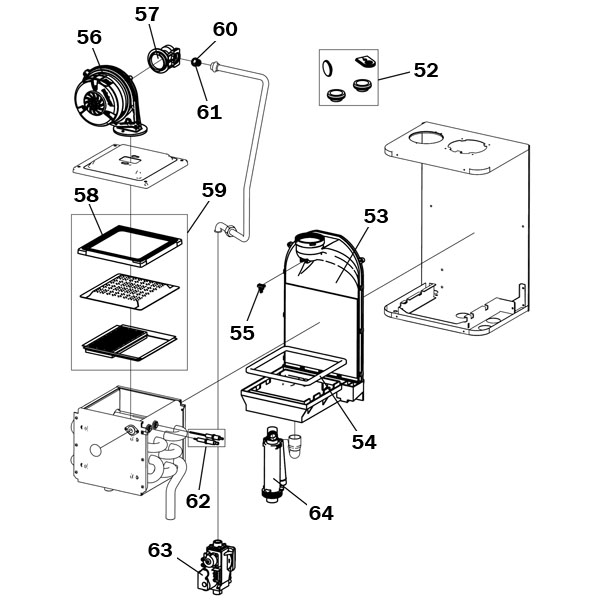

desen tav1440_p4 centr futuria solar 180 gn pagina 04
poz. cod piesa denumire piesa lei fara tva
052 f39834030 kit guarn.cald.mod.18 fm.m7 0.00
053 f39834070 kit vasca cond. (35013310) 0.00
054 f39834820 kit guarn.vasca rc (35103240) 0.00
055 f39810340 kit sonda fumi (36200740) 66.96
056 f39828060 kit ventil.nrg118 (36600270) 884.08
057 f39828070 kit venturi ventil. (35013170) 0.00
058 f39834040 kit guarn.cop.bruc. (35103210) 0.00
059 f39834050 kit bruc.ceram. (37605800) 0.00
060 f39828090 kit ugello gas m. (32203770) 0.00
061 f39828190 kit ugello gas gpl (32203840) 0.00
062 f39832360 kit gr.elettrodi (36702940) 73.01
063 f39828050 kit valv.gas (36800680) 476.87
064 f39821660 kit sifone compl. (35102610) 0.00
