>> echipamente de incalzire >> centrale in condensare >> max. 36.7kw (50/30°c) >> ixcondens c, a.c.m. instant

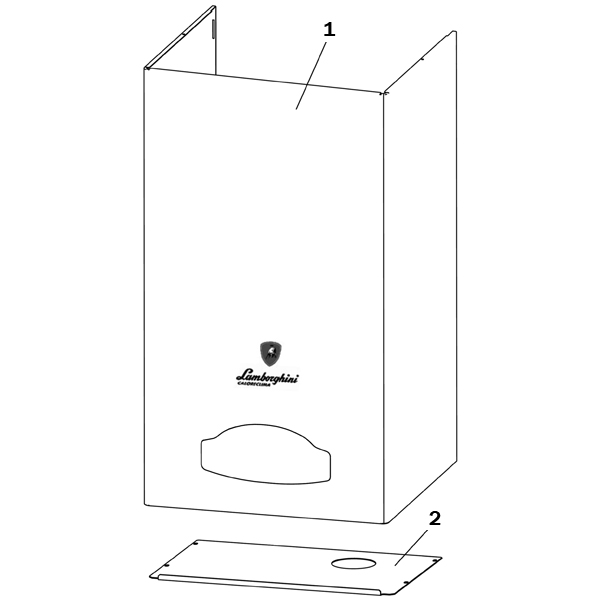

desen tav1435_p1 centrala ixcondens 25c gn/gpl pagina 01
poz. cod piesa denumire piesa 0
001 PF39835150 KIT MANTELLO "LAM"(3110F490) / KIT MANTELLO "LAM" (3110F490) 830.77
002 f39835160 kit griglia infer. (3110g140) 0.00

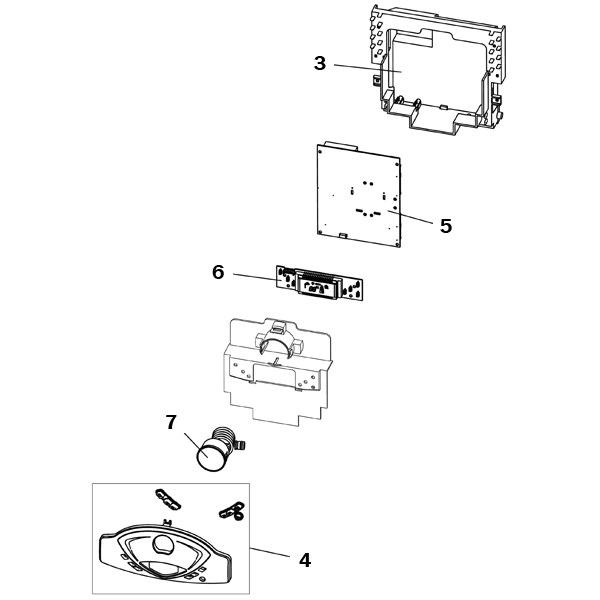

desen tav1435_p2 centrala ixcondens 25c gn/gpl pagina 02
poz. cod piesa denumire piesa lei fara tva
003 f39834980 kit scatola el."lam"(35013850) 0.00
004 f39834990 kit mascherina "lam"(35013580) 0.00
005 f39835000 kit centralina el. (36508330) 849.25
006 f39835010 kit scheda el.dsp10 (38323580) 278.21
007 f39820080 kit idrometro (36402190) 90.68

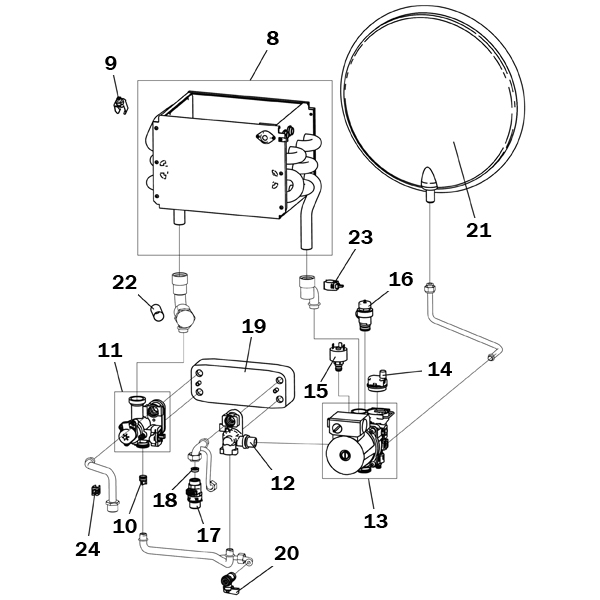

desen tav1435_p3 centrala ixcondens 25c gn/gpl pagina 03
poz. cod piesa denumire piesa lei fara tva
008 f39830941 kit pacco lam. (37404864) 0.00
009 f39821530 kit sonda temp.dp. (36200720) 63.24
010 f39818790 kit 10 valv.n/r. (36902190) 189.26
011 f39820441 kit valv.3vie (36902240) 413.66
012 f39830560 kit racc.scamb.l.r. (36902250) 64.17
013 f39818450 kit pompa ao/fx3fpl (36600100) 687.57
014 f39818220 kit v.aria (39404380-39404730) 179.03
015 f39818260 kit pressost.h2o (39404710) 61.85
016 f39818270 kit valv.sic. (39404720) 51.15
017 f39820450 kit flussom.eltek (36402180) 158.10
018 f39813010 kit 5 reg.port.10lt.(36902080) 84.17
019 f39829110 kit scambiatore 14p.(37404370) 460.28
020 f39808980 kit rub.3/8" tp.5014(36901470) 65.57
021 f39800960 kit vaso esp.8lt. (36800360) 287.67
022 f39820460 kit 5 filtri gr.mand(34014301) 53.01
023 f39810220 kit sonda temp.risc.(36200540) 48.36
024 f39810230 kit sonda temp.san. (36200640) 48.36

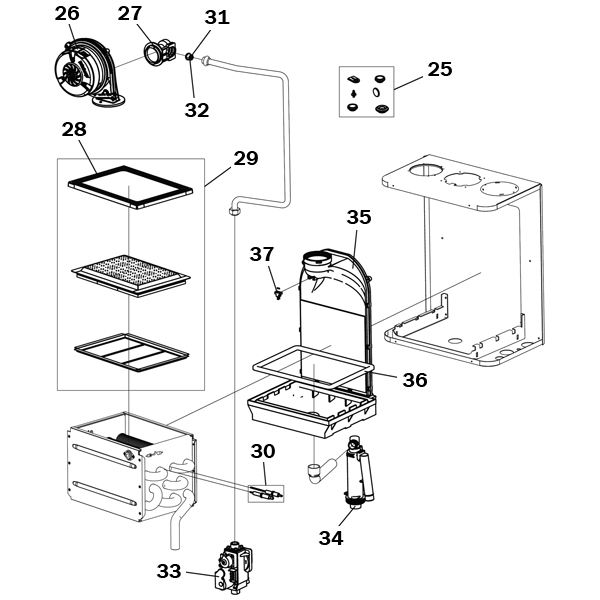

desen tav1435_p4 centrala ixcondens 25c gn/gpl pagina 04
poz. cod piesa denumire piesa lei fara tva
025 f39828030 kit guarn.cald.mod.25 fm.m7 63.71
026 f39828060 kit ventil.nrg118 (36600270) 884.08
027 f39828070 kit venturi ventil. (35013170) 0.00
028 f39821590 kit guarn.cop.bruc. (35101722) 57.20
029 f39807910 kit bruc.ceram. (37608170) 425.70
030 f39832360 kit gr.elettrodi (36702940) 73.01
031 f39828090 kit ugello gas m. (32203770) 0.00
032 f39828190 kit ugello gas gpl (32203840) 0.00
033 f39828050 kit valv.gas (36800680) 476.87
034 f39821660 kit sifone compl. (35102610) 0.00
035 f39828040 kit vasca cond. (35012740) 0.00
036 f39834880 kit guarn.vasca rc (35103000) 51.62
037 f39810340 kit sonda fumi (36200740) 66.96
