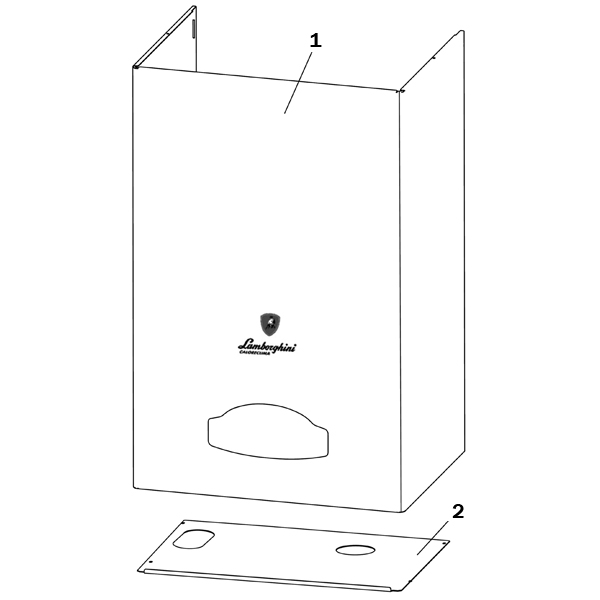

desen tav1436_p1 centrala ixcondens 35c gn/g pl pagina 01
poz. cod piesa denumire piesa 0
001 PF39835100 KIT MANTELLO "LAM"(3110F580) / KIT MANTELLO "LAM" (3110F580) 792.76
002 f39835110 kit griglia infer. (3110g160) 0.00

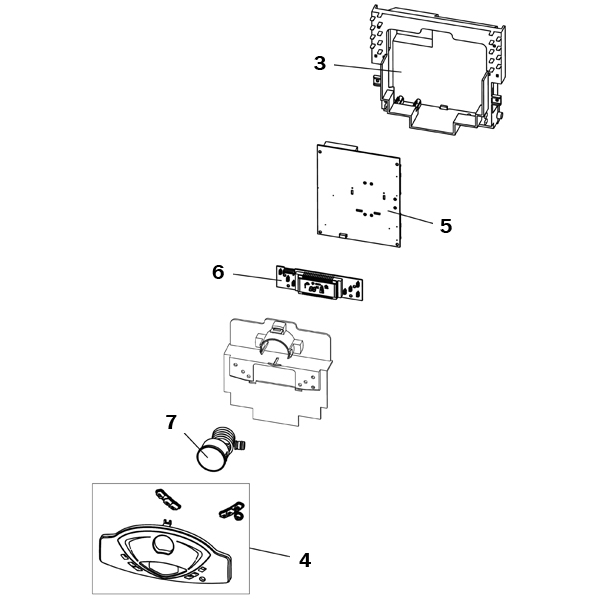

desen tav1436_p2 centrala ixcondens 35c gn/g pl pagina 02
poz. cod piesa denumire piesa lei fara tva
003 f39834980 kit scatola el."lam"(35013850) 0.00
004 f39834990 kit mascherina "lam"(35013580) 0.00
005 f39835000 kit centralina el. (36508330) 849.25
006 f39835010 kit scheda el.dsp10 (38323580) 278.21
007 f39820080 kit idrometro (36402190) 90.68

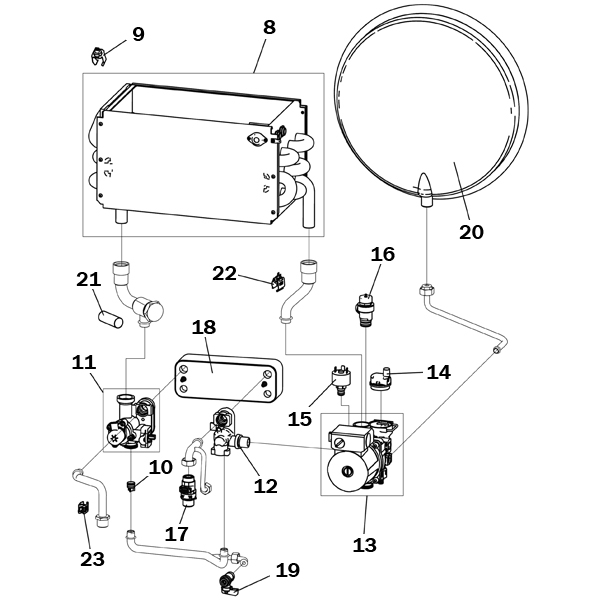

desen tav1436_p3 centrala ixcondens 35c gn/g pl pagina 03
poz. cod piesa denumire piesa lei fara tva
008 f39831141 kit pacco lam. (37404924) 0.00
009 f39821530 kit sonda temp.dp. (36200720) 63.24
010 f39818790 kit 10 valv.n/r. (36902190) 189.26
011 f39820441 kit valv.3vie (36902240) 413.66
012 f39830560 kit racc.scamb.l.r. (36902250) 64.17
013 f39820900 kit pompa 15-60 fpl (36600150) 727.99
014 f39818220 kit v.aria (39404380-39404730) 179.03
015 f39818260 kit pressost.h2o (39404710) 61.85
016 f39818270 kit valv.sic. (39404720) 51.15
017 f39820450 kit flussom.eltek (36402180) 158.10
018 f39828170 kit scambiatore 20p.(37404690) 0.00
019 f39808980 kit rub.3/8" tp.5014(36901470) 65.57
020 f39809690 kit vaso esp.10lt. (36802740) 352.60
021 f39820460 kit 5 filtri gr.mand(34014301) 53.01
022 f39810220 kit sonda temp.risc.(36200540) 48.36
023 f39810230 kit sonda temp.san. (36200640) 48.36

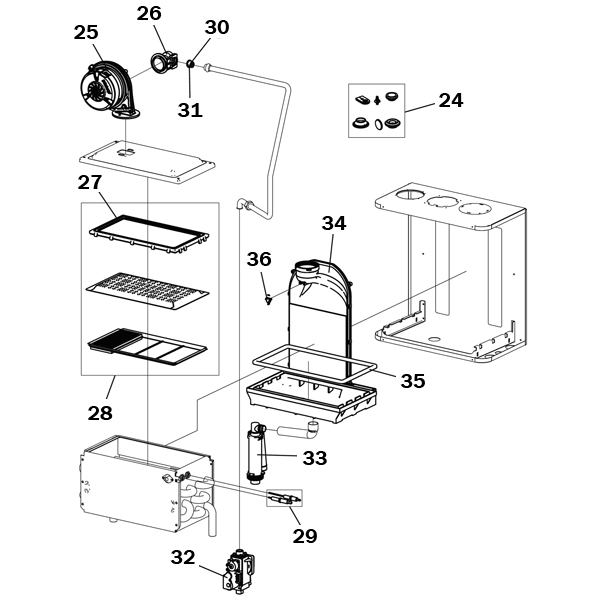

desen tav1436_p4 centrala ixcondens 35c gn/g pl pagina 04
poz. cod piesa denumire piesa lei fara tva
024 f39828250 kit guarn.cald.mod.35 fm.m7 70.68
025 f39828060 kit ventil.nrg118 (36600270) 884.08
026 f39828160 kit venturi ventil. (35013300) 87.42
027 f39821710 kit guarn.cop.bruc. (35103530) 73.01
028 f39810670 kit bruc.ceram. (37608320) 452.79
029 f39832360 kit gr.elettrodi (36702940) 73.01
030 f39828130 kit ugello gas m. (32203830) 0.00
031 f39828200 kit ugello gas gpl (32203850) 0.00
032 f39828050 kit valv.gas (36800680) 476.87
033 f39821660 kit sifone compl. (35102610) 0.00
034 f39828140 kit vasca cond. (35012750) 0.00
035 f39835120 kit guarn.vasca rc (35103050) 0.00
036 f39810340 kit sonda fumi (36200740) 66.96
