>> echipamente de incalzire >> centrale in condensare >> max. 36.7kw (50/30°c) >> ixcondens t, numai incalzire

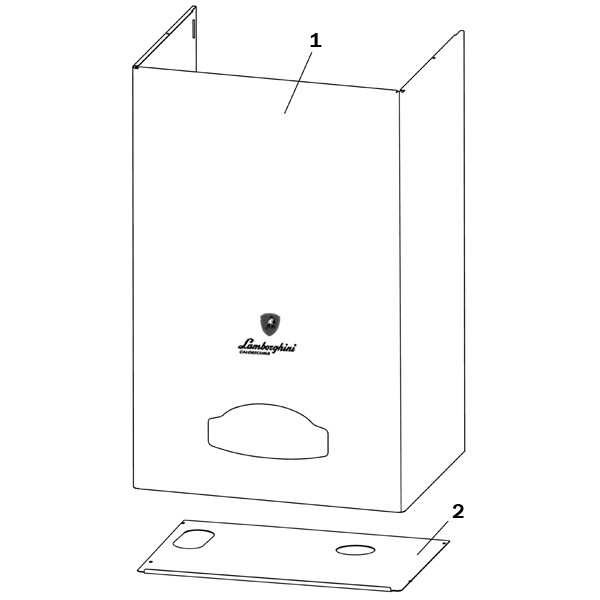

desen tav1434_p1 centrala ixcondens 35t gn/gpl pagina 01
|
|
| poz. |
cod piesa |
denumire piesa |
0 |
| 001 |
PF39835100 |
KIT MANTELLO "LAM"(3110F580) / KIT MANTELLO "LAM" (3110F580) |
792.76 |
| 002 |
f39835110 |
kit griglia infer. (3110g160) |
0.00 |
|

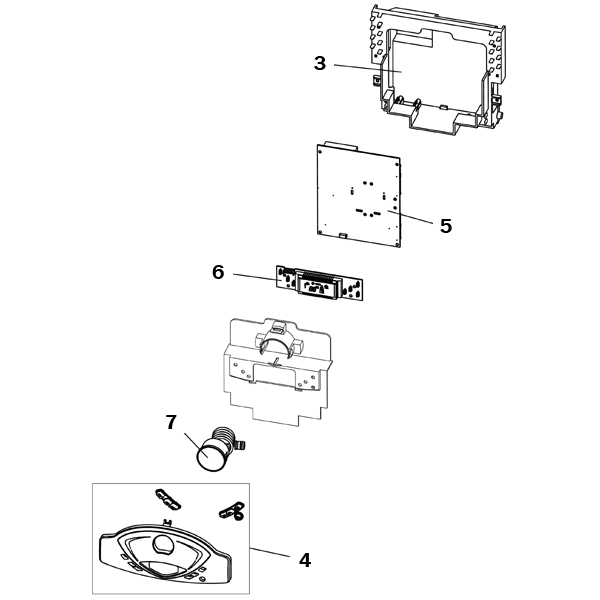

desen tav1434_p2 centrala ixcondens 35t gn/gpl pagina 02
|
|
| poz. |
cod piesa |
denumire piesa |
lei fara tva |
| 003 |
f39834980 |
kit scatola el."lam"(35013850) |
0.00 |
| 004 |
f39834990 |
kit mascherina "lam"(35013580) |
0.00 |
| 005 |
f39835000 |
kit centralina el. (36508330) |
849.25 |
| 006 |
f39835010 |
kit scheda el.dsp10 (38323580) |
278.21 |
| 007 |
f39820080 |
kit idrometro (36402190) |
90.68 |
|

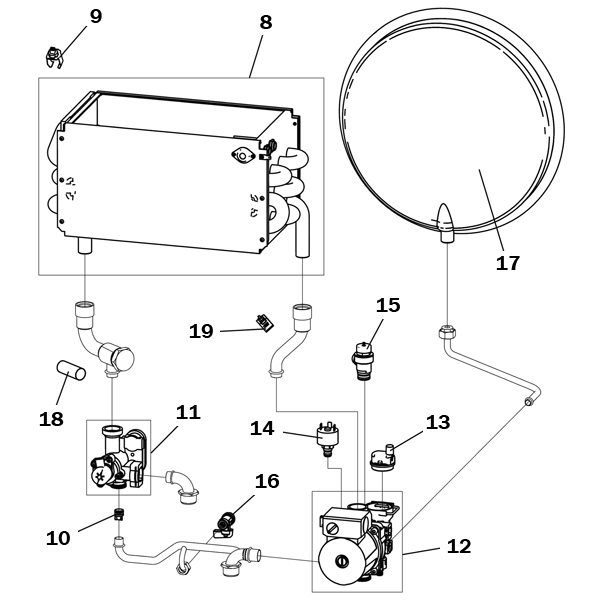

desen tav1434_p3 centrala ixcondens 35t gn/gpl pagina 03
|
|
| poz. |
cod piesa |
denumire piesa |
lei fara tva |
| 008 |
f39831141 |
kit pacco lam. (37404924) |
0.00 |
| 009 |
f39821530 |
kit sonda temp.dp. (36200720) |
63.24 |
| 010 |
f39818790 |
kit 10 valv.n/r. (36902190) |
189.26 |
| 011 |
f39828210 |
kit valv.3vie (36902320) |
0.00 |
| 012 |
f39820900 |
kit pompa 15-60 fpl (36600150) |
727.99 |
| 013 |
f39818220 |
kit v.aria (39404380-39404730) |
179.03 |
| 014 |
f39818260 |
kit pressost.h2o (39404710) |
61.85 |
| 015 |
f39818270 |
kit valv.sic. (39404720) |
51.15 |
| 016 |
f39808980 |
kit rub.3/8" tp.5014(36901470) |
65.57 |
| 017 |
f39809690 |
kit vaso esp.10lt. (36802740) |
352.60 |
| 018 |
f39820460 |
kit 5 filtri gr.mand(34014301) |
53.01 |
| 019 |
f39810220 |
kit sonda temp.risc.(36200540) |
48.36 |
|

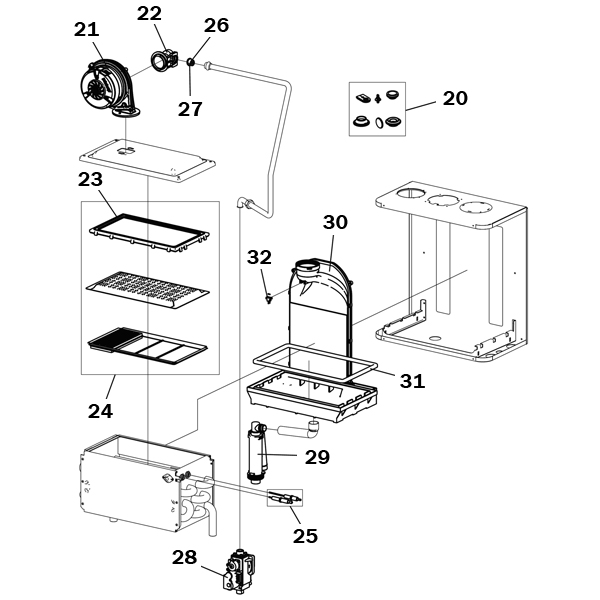

desen tav1434_p4 centrala ixcondens 35t gn/gpl pagina 04
|
|
| poz. |
cod piesa |
denumire piesa |
lei fara tva |
| 020 |
f39828250 |
kit guarn.cald.mod.35 fm.m7 |
70.68 |
| 021 |
f39828060 |
kit ventil.nrg118 (36600270) |
884.08 |
| 022 |
f39828160 |
kit venturi ventil. (35013300) |
87.42 |
| 023 |
f39821710 |
kit guarn.cop.bruc. (35103530) |
73.01 |
| 024 |
f39810670 |
kit bruc.ceram. (37608320) |
452.79 |
| 025 |
f39832360 |
kit gr.elettrodi (36702940) |
73.01 |
| 026 |
f39828130 |
kit ugello gas m. (32203830) |
0.00 |
| 027 |
f39828200 |
kit ugello gas gpl (32203850) |
0.00 |
| 028 |
f39828050 |
kit valv.gas (36800680) |
476.87 |
| 029 |
f39821660 |
kit sifone compl. (35102610) |
0.00 |
| 030 |
f39828140 |
kit vasca cond. (35012750) |
0.00 |
| 031 |
f39835120 |
kit guarn.vasca rc (35103050) |
0.00 |
| 032 |
f39810340 |
kit sonda fumi (36200740) |
66.96 |
|
