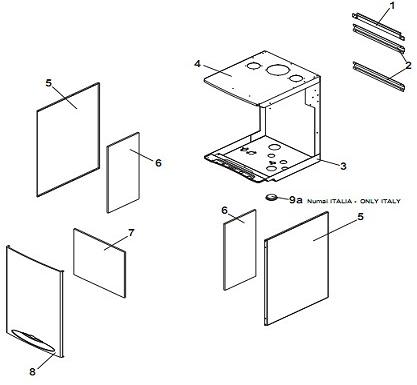

desen explodat centr.cond.tahiti kr55 58kw pagina 1
_tahiti condensing line tech kr 55-85_pag.1.jpg
poz. cod piesa denumire piesa 0
1 6stasost04 brida suport centrala 0
2 6profpor00 sina profilata suport cazan 0
3 6fondmur12 sasiu complet modul condensare 0
4 6copecom00 capac modul condensare 0
5 6panlacm01 panou lateral 0
6 6isollat06 izolatie panou lateral 0
7 6isolant01 izolatie panou frontal 0
8 6panfrcm06 panou frontal fondital 0
9a 6tappcil00 capac cilindric d.56 (numai italia) 0
9b 6wguasil03 guarnitura silicon d 52x24 0

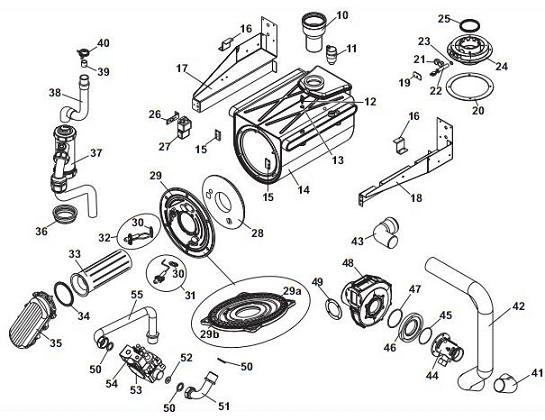

desen explodat centr.cond.tahiti kr55 58kw pagina 2
_tahiti condensing line tech kr 55-85_pag.2.jpg
poz. cod piesa denumire piesa 0
10 6riduzio10 reductie m-f 60/80 l=134 0
11 6valsfau02 aerisitor g 1/2'' 0
12 6SONDNTC01 SONDA IMERSIE NTC - DUAL LINE / SONDA NTC AD IMMERSIONE 63.69
13 6WRONDAL00 SAIBA DE ALUMINIU PENTRU RACORD / RONDELLA IN ALLUMINIO 13.80
14 6scamcon05 schimbator condensare 55 kw. 0
15 6piafisc01 clema fixare schimbator mono 0
16 6piafisc02 clema fixare verticala schimbator mono 0
17 6stafisc10 brida fixare schimbator mono stg. 0
18 6stafisc09 brida fixare schimbator mono dr. 0
19 6piaschi00 placa de fixare cos fum 0
20 6guarniz35 garnitura etansare cos gaze arse 0
21 6wtapfum02 dop de inchidere d=12 mm 0
22 6inseter00 insertie pentru termostatul de fum 0
23 6orterfu00 inel o-ring pentru termostatul de fum 0
24 6torrsca00 racord cos gaze arse 0
25 6guarniz37 garnitura cu trei fete 0
26 6stasupp03 brida suport transformator 0
27 6trasfac00 transformator tsm brahma 0
28 6isolbru01 izolatie usa modul arzator 0
29 6portbru01 usa arzator 0
29a 6guarpor00 garnitura silicon 0
29b 6trecpor00 fibra sticla usa schimbator condensare 0
30 6guarniz38 garnitura pentru electrozi 0
31 6candril01 sistem de detectie 55-85 0
32 6candacc00 element de aprindere 0
33 6brucond00 arzator condensare 55 kw. 0
34 6guarbru00 garnitura arzator 0
35 6manarga01 manson modul aer-gaz 0
36 6manicot05 manson d.60 0
37 6sifraco01 sifon colectare condens cu capac plat 0
38 6tuscaco00 conducta evacuare condens 0
39 6tubosil02 tub silicon d.20 x d.15 x250 0
40 6fascmol01 element elastic strangere 0
41 6curvtec00 cot 50 mm. 0
42 6tubocor02 conducta incretita 50mm 0
43 6curvtec01 cot 50mm 0
44 6mixerag01 mixer sit 390 0
45 6yguaror00 garnitura o-ring ventilator 0
46 6flacoll00 flansa de legatura 0
47 6orventi00 inel o-ring 70x3 ventilator 0
48 6VENTILA14 VENTILATOR EBM PAPST RG 148 / EBM PAPST RG 148 FAN 1840.00
49 6guarven01 garnitura ventilator 0
50 6gromnia03 garnitura 3/4" 0
51 6tubogas34 conducta admisie gaz la mixer 55 kw 0
52 P6DIAFRAM42 DIAFRAGMA Ø5,9-G31 COND. 55 KW / SET 5 X UGELLO GPL 5.9MM - KR 55 73.00
52 P6DIAFRAM43 DIAFRAGMA Ø7,9-G31 COND. 85 KW / SET 5 X UGELLO GPL 7.9MM - KR 85 73.00
52 6diafram44 diafragma ø8,2-g20 cond. 55 kw 0
52 6diafram45 diafragma ø10,3-g20 cond. 85 kw 0
53 6valvgas10 vana gaz sit - model 55 kw 0
54 P6YBOBINA00 BOBINA VANA SIT 840-845-848 / BOBINA VALVOLA SIT 840-845-848 114.81
55 6tubogas35 conducta admisie gaz vana - model 55 kw 0

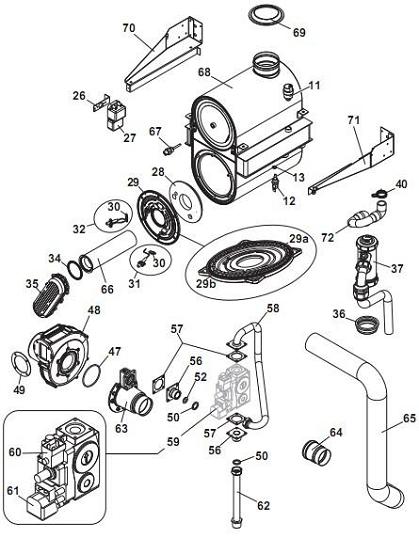

desen explodat centr.cond.tahiti kr55 58kw pagina 3
_tahiti condensing line tech kr 55-85_pag.3.jpg
poz. cod piesa denumire piesa 0
11 6valsfau02 aerisitor g 1/2'' 0
12 6SONDNTC01 SONDA IMERSIE NTC - DUAL LINE / SONDA NTC AD IMMERSIONE 63.69
13 6WRONDAL00 SAIBA DE ALUMINIU PENTRU RACORD / RONDELLA IN ALLUMINIO 13.80
26 6stasupp03 brida suport transformator 0
27 6trasfac00 transformator tsm brahma 0
28 6isolbru01 izolatie usa modul arzator 0
29 6portbru01 usa arzator 0
29a 6guarpor00 garnitura silicon 0
29b 6trecpor00 fibra sticla usa schimbator condensare 0
30 6guarniz38 garnitura pentru electrozi 0
31 6candril01 sistem de detectie 55-85 0
32 6candacc00 element de aprindere 0
33 6brucond00 arzator condensare 55 kw. 0
34 6guarbru00 garnitura arzator 0
35 6manarga01 manson modul aer-gaz 0
36 6manicot05 manson d.60 0
37 6sifraco01 sifon colectare condens cu capac plat 0
40 6fascmol01 element elastic strangere 0
47 6orventi00 inel o-ring 70x3 ventilator 0
48 6VENTILA14 VENTILATOR EBM PAPST RG 148 / EBM PAPST RG 148 FAN 1840.00
49 6guarven01 garnitura ventilator 0
50 6gromnia03 garnitura 3/4" 0
52 P6DIAFRAM42 DIAFRAGMA Ø5,9-G31 COND. 55 KW / SET 5 X UGELLO GPL 5.9MM - KR 55 73.00
56 6raccoin00 racord admisie gaz 0
57 6guargas00 garnitura gaz 46x46 0
58 6tubogas33 conducta admisie gaz la mixer 85 kw 0
59 6valvgas09 vana gaz sit 822 - model 85 kw 0
60 6bobinev02 bobina ev2 220/240 v, 50 hz 0
61 6bobinev01 bobina ev1 220/240 v, 50 hz 0
62 6tubogas32 conducta admisie gaz vana - model 85 kw 0
63 6mixerag00 mixer honeywell vms 0
64 6raccord18 racord pentru mixer 0
65 6tubocor04 conducta incretita d.60mm 0
66 6brucond01 arzator condensare 85 kw 0
67 6termfus00 termofusibile 115° c 0
68 6scamcon10 schimbator condensare 85 kw 0
69 6guarniz44 garnitura etansare cos fum 0
70 6stafisc07 brida fixare schimbator duo stg. 0
71 6stafisc06 brida fixare schimbator duo dr. 0
72 6tuscaco01 conducta evacuare condens cu doua coturi 0


desen explodat centr.cond.tahiti kr55 58kw pagina 4
_tahiti condensing line tech kr 55-85_pag.4.jpg
poz. cod piesa denumire piesa 0

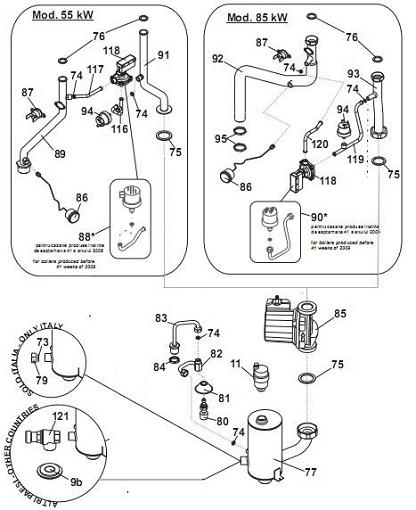

9b 6wguasil03 guarnitura silicon d 52x24 0
11 6valsfau02 aerisitor g 1/2'' 0
73 6GROMNIA02 GARNITURA 1/2" / GUARNIZIONE 1/2" OMNIA TESNIT 12.74
74 6gromnia00 garnitura 1/4" 0
75 6gromnia06 garnitura 1 1/2" 0
76 6gromnia04 garnitura 1" 0
77 6tubobot40 butelie dezaerare 0
79 6tappogf00 dop g 1/2 f 0
80 6RUBICAR04 ROBINET DE UMPLERE / KRAMER L=50 FILLING TAP 55.20
81 6guarsil01 garnitura silicon ilga 002-g 0
82 6racruca01 racord robinet de umplere kr 0
83 6tubruca01 tub robinet de umplere 0
84 6GHIEROT00 PIULITA INEL G1/2" / GHIERA G1/2 19.11
85 6circola17 pompa circul.rs 25-7-3-9 crf (55kw) 0
85 6circola18 pompa circul.grundfos ups25-80-130(85kw) 0
86 6manomet06 manometru g1/4 0,70 m 0
87 6TERMSIC05 TERMOSTAT DE SIGURANTA 95°C / TERMOSTATO DI SICUREZZA 58.38
88 6kitpres55 kit presostat 55 kw 0
89 6tubmaim21 conducta tur instalatie model 55 kw. 0
90 6kitpres85 kit presostat 85 kw 0
91 6tubriim15 conducta retur instalatie model 55 kw. 0
92 6tubmaim20 conducta tur instalatie model 85 kw. 0
93 6tubriim14 conducta retur instalatie model 85 kw. 0
94 P6PRESSAC00 PRESOSTAT APA / PRESSOSTATO ACQUA 48.81
95 6ghierot02 piulita inel g 1" 0
116 6tubocol02 tub tur presostat dif. 55 kw. 0
117 6tubocol03 tub retur presostat dif. 55 kw. 0
118 6pressac04 presostat diferential 0
119 6tubocol04 tub tur presostat dif. 85 kw 0
120 6tubocol05 tub retur presostat dif. 85 kw 0
121 6valsiba14 supapa de siguranta g1/2 4bar 0


desen explodat centr.cond.tahiti kr55 58kw pagina 5
_tahiti condensing line tech kr 55-85_pag.5.jpg
poz. cod piesa denumire piesa 0
78 6valsiba10 supapa de siguranta g1/2 - 4bar - ispesl 0
108 6tronisp00 tronson ispesl 0
109 6termomt03 termometru 120°c ispesl 0
110 6pozzett00 priza testare ispesl l=45 0
111 6pressac03 presostat de apa de maxim ispesl 0
112 6rubiman00 robinet manometru - esantionare ispesl 0
113 6termsic09 termostat de siguranta 100°c ispesl 0
114 6manomet07 manometru ispesl 0
115 6tappogm00 dop g 1/2 (fe) 0

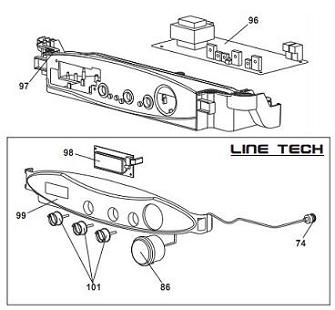

desen explodat centr.cond.tahiti kr55 58kw pagina 6
_tahiti condensing line tech kr 55-85_pag.6.jpg
poz. cod piesa denumire piesa 0
74 6gromnia00 garnitura 1/4" 0
86 6manomet06 manometru g1/4 0,70 m 0
96 6schemod18 placa electronica modulare 0
97 6scaelpa00 caseta componente electronice 0
98 6schelcd00 placa lcd 0
99 6fronpan11 panou frontal line tech fn 0
101 6manopol00 buton d.18 pentru cazane murale fn 0

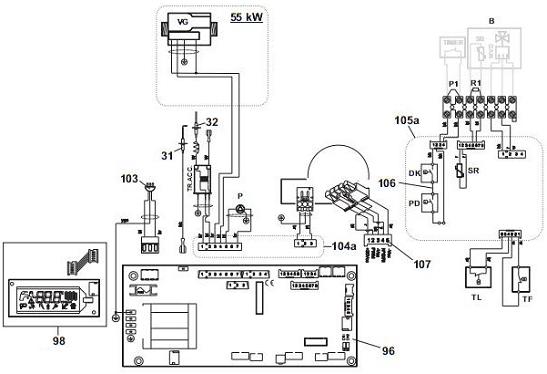

desen explodat centr.cond.tahiti kr55 58kw pagina 7
_tahiti condensing line tech kr 55-85_pag.7.jpg
poz. cod piesa denumire piesa 0
31 6candril01 sistem de detectie 55-85 0
32 6candacc00 element de aprindere 0
96 6schemod18 placa electronica modulare 0
98 6schelcd00 placa lcd 0
103 6cavoali00 cablu de alimentare 0
104a 6cablmod04 cablu vana gaz, pompa, tran.apr., vent, kr 55 0
105a 6cablmod03 cablu presostat, sonda, tl, tf, mod.55 0
106 6collega26 cablu presostat de minim si maxim 0
107 6cablmod01 cablu ventilator 0

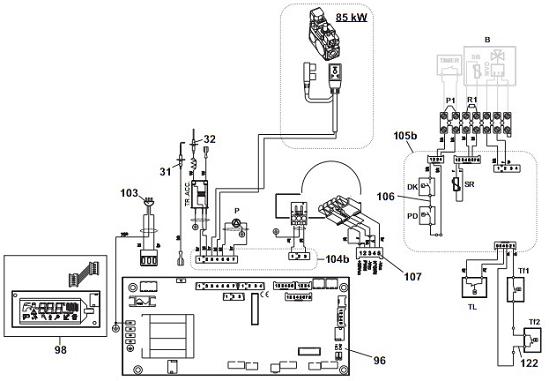

desen explodat centr.cond.tahiti kr55 58kw pagina 8
_tahiti condensing line tech kr 55-85_pag.8.jpg
poz. cod piesa denumire piesa 0
31 6candril01 sistem de detectie 55-85 0
32 6candacc00 element de aprindere 0
96 6schemod18 placa electronica modulare 0
98 6schelcd00 placa lcd 0
103 6cavoali00 cablu de alimentare 0
104b 6cablmod06 cablu vana gaz, pompa, tran.apr., vent, kr 85 0
105b 6cablmod05** cablu presostat, sonda, tl, tf, mod.85 0
105b 6cablmod07 cablu presostat, sonda, tl, tf1, mod.85 0
106 6collega26 cablu presostat de minim si maxim 0
107 6cablmod01 cablu ventilator 0
122 6cablmod08 cablaj termofuzibil tf2 0
