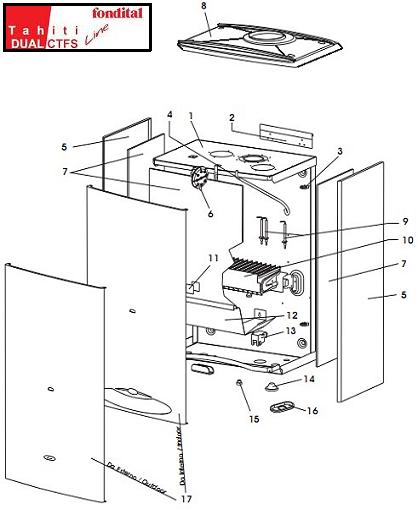

desen explodat cen.tahiti dual line ctfs24met pagina 1
__tahiti.dual line ctfs 24-28_pag.1.jpg
poz. cod piesa denumire piesa 0
1 6fondmur08 sasiu complet - dual line tfs 0
2 6stasost02 brida de fixare pe perete - cazane murale c 0
3 6passaca03 clema 0
4 6YTUBCON02 TUB DE SILICON : INTERIOR Ø4 MM., EXTERIOR Ø8 MM. / TUBO SILICONE 29.72
5 6PANLACM00 PANOU LATERAL CAZAN / WALL-HUNG BOILER SIDE PANEL 60.00
6 6YPRESSO00 PRESOSTAT AER 52/42 PA HUBA / AIR PRESSURE SWITCH 42/52PA 117.00
6 6PRESSOS02 PRESOSTAT AER 67/57 PA HUBA / 67/57PA PRESSURE SWITCH 120.00
7 6isolric00 set izolatie carcasa la model dual line 24 0
7 6isolric01 set izolatie carcasa la model dual line 28 0
8 6coperig00 capac superior cazan 0
9 6CANDELA00 ELECTROD DE APRINDERE / CANDELA DI ACCENSIONE 35.03
10 6brummet03 arzator 12 metan - model 24 (not russia) 0
10 6brumgpl03 arzator 12 gpl - model 24 (not russia) 0
10 6brummet04 arzator 13 metan - model 28 (russia 24-28) 0
10 6brumgpl04 arzator 13 gpl - model 28 0
10 6brugplr00 arzator 13 gpl - model 24 russia 0
10 0trasmet04 kit conversie metan - dual line ctfs 24 (not russia) 0
10 0trasmet05 kit conversie metan - dual line ctfs 28 - russia (24-28) 0
10 0trasgpl03 kit conversie gpl - dual line ctfs 24 (not russia) 0
10 0trasgpl06 kit conversie gpl - dual line ctfs 28 0
10 0trasgpl04 kit conversie gpl - dual line ctfs 24 russia 0
11 6yvetrin00 vizor de sticla 0
12 6lamiant00 placa anti-radianta pentru cazane murale 0
13 6ytraacc00 transformator de aprindere 0
14 6guarsil01 garnitura de etansare silicon d=38mm.,gros=10mm. 0
15 6wtapfum01 dop de etansare d=12mm. 0
16 6guarpas03 presetupa 0
17 6panfrcm04 panou frontal dual line fn cu degajare inspectie 0
17 6panfrcm06 panou frontal dual line fn fara degajare inspectie 0
17 6panfrcm01 panou frontal de exterior - dual line 0

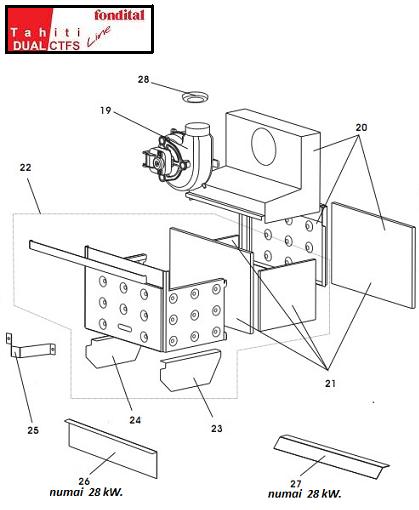

desen explodat cen.tahiti dual line ctfs24met pagina 2
__tahiti.dual line ctfs 24-28_pag.2.jpg
poz. cod piesa denumire piesa 0
19 6ventila07 ventilator fime gr02015 la model 24 0
19 6ventila10 ventilator fime gr02865 la model 28 0
20 6capfurc00 camera gaze arse pentru cazane murale 0
21 6setisrc00 set complet izolatie camera 0
22 6camcorc00 camera de ardere pentru cazane murale 0
23 6defledx00 deflector dreapta pentru camera gaze arse cazane murale 0
24 6deflesx00 deflector stanga pentru camera gaze arse cazane murale 0
25 6staanpu00 brida anti-vibrare pentru dual ctfs 0
26 6deflant00 brida frontala deflector camera gaze 28 0
27 6deflpos00 brida posterioara deflector camera gaze 28 0
28 6diafsca01 diafragma gaze arse ø 42 0
28 6diafsca02 diafragma gaze arse ø 45 0
28 6diafsca04 diafragma gaze arse ø 40 0
28 6diafsca05 diafragma gaze arse ø 49 - numai 28 kw 0
28 6diafsca06 diafragma gaze arse ø 44 0
28 6diafsca07 diafragma gaze arse ø 47 0
28 6diafsca09 diafragma gaze arse ø 41 0

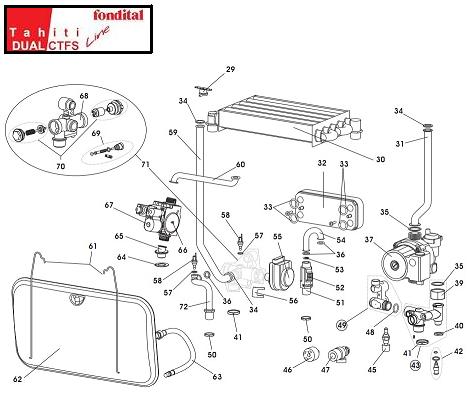

desen explodat cen.tahiti dual line ctfs24met pagina 3
__tahiti.dual line ctfs 24-28_pag.3.jpg
poz. cod piesa denumire piesa 0
29 6ytersic00 termostat de siguranta 105°c 0
30 6scammon05 schimbator de caldura - model 24 0
30 6scampri00 schimbator de caldura - model 28 0
31 6tubriim00 teava retur sistem incalzire - modele 24 - 28 0
32 6scampia01 schimbator in placi (14) - model 24 kw 0
32 6scampia02 schimbator in placi (18) - model 28 kw 0
33 6orscapi00 o-ring etansare la schimbator in placi 0
34 6gromnia03 garnitura 3/4" 0
35 6gromnia04 garnitura 1" 0
36 6GROMNIA02 GARNITURA 1/2" / GUARNIZIONE 1/2" OMNIA TESNIT 12.74
37 6CIRCOLA07 POMPA CIRCULATIE RSL 15/6-3-KU-CLR-3 / CIRCULATING PUMP RSL15/6-3-KU-CLR-3 757.50
39 6girello03 girello g1 per raccordo pompa e circuito risc. 0
40 6y41138700 piulita fixare robinet de golire 0
41 6GHIEROT01 PIULITA INELARA G 3/4" / GHIERA G3/4 20.17
42 6rubisca01 robinet de golire 0
43 6gridrir00 bloc hidraulic pentru retur incalzire 0
45 6RUBICAR04 ROBINET DE UMPLERE / KRAMER L=50 FILLING TAP 55.20
46 P6PRESSAC00 PRESOSTAT DE APA / PRESSOSTATO ACQUA 48.81
47 6valsiba07 supapa de siguranta 3 bar 0
48 6orrascp00 o-ring etansare la racordul schimbatorului de caldura 0
49 6grurirc00 grup racord pentru schimbatorul de caldura 0
50 6GHIEROT00 PIULITA INELARA G 1/2'' / GHIERA G1/2 19.11
51 6flussos00 senzor de debit bitron 0
52 6relrefl00 releu reed - senzor de debit "bitron" 0
53 6regoflu00 regulator de debit 10 l./min. 0
54 6tubinaf01 teava intrare apa rece cu racord 0
55 6PROATTT00 PROGRAMATOR 1651/2.0.00 / ACTUATOR PROGRAMMER 150.00
56 6clifmel00 clema fixare motor electric 0
57 6WRONDAL00 SAIBA DE ALUMINIU / RONDELLA IN ALLUMINIO 13.80
58 6SONDNTC01 SONDA NTC IMERSIE 10 KOHM / SONDA NTC AD IMMERSIONE 63.69
59 6tubmaim05 teava distributie la tur incalzire 0
60 6tubogas09 teava gaz 0
61 6molsuvc00 clema suport vas expansiune 0
62 6vasoesp10 vas expansiune 8 litri - zilmet 539 special 0
63 6tubflex02 racord flexibil 3/8" 0
64 6guavaga01 garnitura vana gaz 0
65 6curfivg00 tub de racordare vana gaz ''sit'' 0
66 P6VALVGAS04 VANA GAZ SIT SIGMA 845 / VALVOLA GAS SIT 845 (-20°C) 374.00
67 P6YBOBINA00 BOBINA PENTRU VANA GAZ SIT (840-845-848) / BOBINA VALVOLA SIT 840-845-848 114.81
68 6CORTREV00 CORP VANA CU 3 CAI (CU MOTOR) / THREE WAY VALVE BODY 83.00
69 6bypridu00 conducta by-pass 0
70 6ottupia00 obturator incalzire si platou acm 0
71 6corpval01 vana cu 3 cai - ansamblu 0
72 6tubusac00 teava iesire acm 0

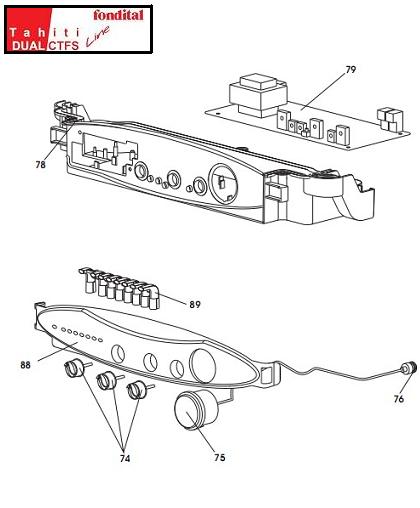

desen explodat cen.tahiti dual line ctfs24met pagina 4
__tahiti.dual line ctfs 24-28_pag.4.jpg
poz. cod piesa denumire piesa 0
74 6manopol00 butoane d=18 panou cazane fn 0
75 6manomet01 manometru 0
76 6orinnma00 o-ring etansare manometru 0
78 6scaelpa00 sasiu panou de comanda 0
79 6schemod14 placa electronica cu modulare 0
88 6fronpan15 masca panou comanda fn - dual line 0
89 6guippcm04 suport leduri panou comanda cazan 0

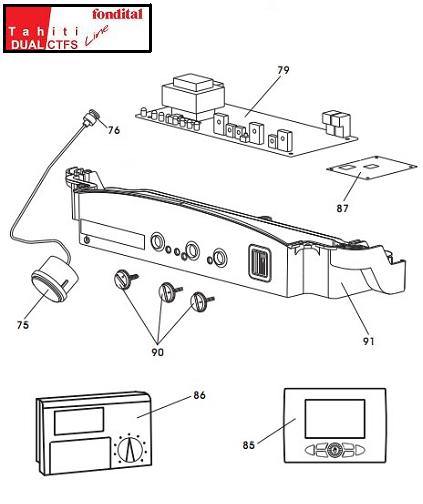

desen explodat cen.tahiti dual line ctfs24met pagina 5
__tahiti.dual line ctfs 24-28_pag.5.jpg
poz. cod piesa denumire piesa 0
75 6manomet01 manometru 0
76 6orinnma00 o-ring etansare manometru 0
79 6schemod14 placa electronica cu modulare 0
85 6cremoto04 comanda la distanta nordgas 0
86 6cremoto03 comanda la distanta como ot 0
87 6scherem00 placa interfata comanda la distanta 0
90 6manopol02 butoane d=18 panou fn la cazane de exterior 0
91 6scaelpa01 sasiu panou de comanda modele cazane de exterior 0

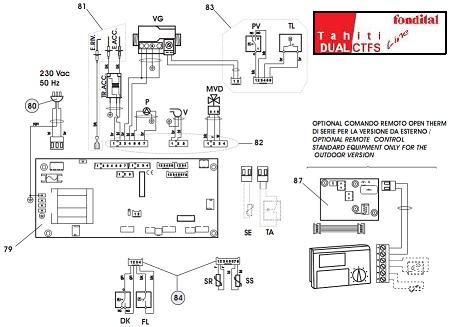

desen explodat cen.tahiti dual line ctfs24met pagina 6
__tahiti.dual line ctfs 24-28_pag.6.jpg
poz. cod piesa denumire piesa 0
79 6schemod14 placa electronica cu modulare 0
80 6cavoali00 cablu de alimentare 0
81 6cablmur07 forma cablu electrod de aprindere si detectie 0
82 6cablmur13 forma cablu pompa-vana gaz-ventilator-mvd 0
83 6cablmur15 forma cablu modulator-presostat apa-term.sig. 0
84 6cablmur14 forma cablu senzor debit-presostat aer-sonda ntc 0
87 6scherem00 placa interfata comanda la distanta 0
