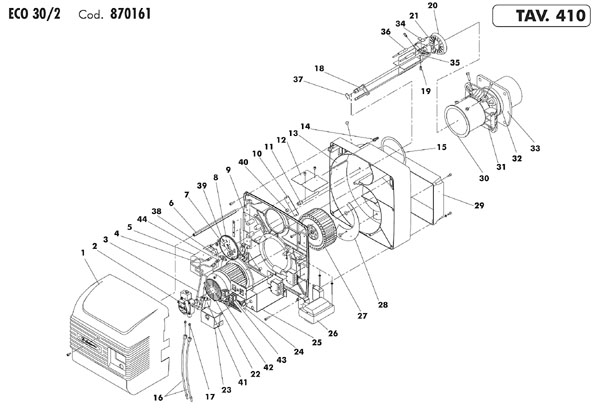

Desen explodat Arzator pe motorina ECO 30/2 - Pagina 1
Desen explodat ECO 30/2 410
Poz. Cod piesa Denumire piesa Lei fara TVA
001 1110770 Capac 0.00
002 4033000 Pompa Suntec AS 67 C-1570-1P0500 0.00
003 1119060 Tub alimentare o treapta 0.00
004 1120100 Tub alimentare doua trepte 0.00
005 4037630 Motoreductor 0.00
006 1119040 Distantiator capac 0.00
007 1119500 Passacavo 0.00
008 1120080 Suport jigler 0.00
009 1120050 Surub capac 0.00
010 1119050 Vizor 0.00
011 1120060 Perno bandella 0.00
012 1120070 Banda atmosferica 0.00
013 1120010 Coclea aria 0.00
014 1119170 Racord esantion aer 0.00
015 1119950 Garnitura tun ardere 0.00
016 1069220 Racord flexibil L=1000 0.00
017 1001190 Niplu MM 3/8" 0.00
017 1058020 Niplu 1/4'' 0.00
018 1103100 Suport jigler 0.00
019 1016790 Distantiator 0.00
020 1085080 Deflector (224702) 0.00
021 4010280 Electrod aprindere 0.00
022 1119930 Motor monofazat 370 W (EX403741) 0.00
023 4035230 Bloc Landis LOA 24 171B27 0.00
024 4015510 Soclu automat ardere 0.00
025 1119960 Placa panou electric 0.00
026 4036660 Transformator 12000V MA35(223583) 0.00
027 4037510 Turbina D.180 x 70 (221569) 0.00
028 1119920 Presurizare 0.00
029 1120000 Capac aer 0.00
030 1103070 Tun de ardere 0.00
031 1014640 Flansa 0.00
032 1065930 Garnitura flansa: snur izolator 0.00
033 1014663 Garnitura izolanta 0.00
034 1063710 Brida prindere electrod 0.00
035 1086740 Suport electrod 0.00
036 1119660 Cablu electrod aprindere 0.00
037 1118650 Racord flexibil 0.00
038 4036420 Suport fotorezistenta 4036440 0.00
039 1118710 Vizor 0.00
040 1120130 Cuplaj motor (EX403766) 0.00
041 4036690 Electrovalva Parker 0.00
042 4036970 Portafusibile completo VE131AN-KT09 0.00
043 4036960 Intrerupator on-off 0.00
044 4037420 Fotorezistenta 0.00
