Desen explodat Arzator pe motorina ECO 2.5 LN - Pagina 1

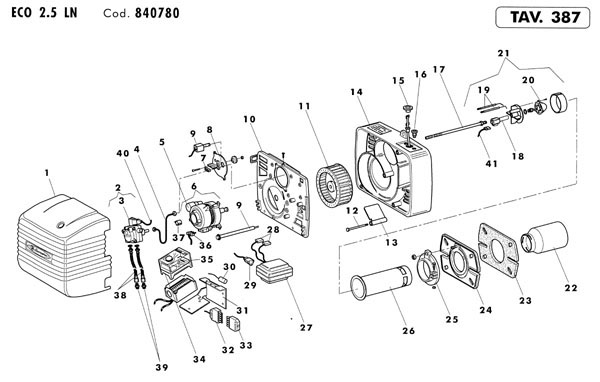

Desen explodat ECO 2.5 LN 387
Poz. Cod piesa Denumire piesa Lei fara TVA
001 1088500 Capac 0.00
002 4033040 Pompa Danfoss 0.00
002 4017780 Pompa motorina Suntec AS 47B 0.00
003 4034730 Bobina Danfoss 071N0010 0.00
003 4018700 Bobina electrovalva 3713798 0.00
004 1086970 Teaca flux 0.00
004 1080950 Teava flux 0.00
005 4032060 Condensator 4 mF 0.00
006 1080930 Motor 0.00
007 1077800 Indice de referinta 0.00
008 1085790 Flansa linie duza 0.00
009 4033140 Fotorezistenta Satronic IRD 910 0.00
010 1111060 Componente placa 0.00
011 4032290 Ventilator D.127 x 50 0.00
012 1111050 Curea pin 0.00
013 1105610 Curea 0.00
014 1110050 Corp arzator 0.00
015 1078030 Buton reglare aer 0.00
016 1078040 Vite regolazione aria 0.00
017 1105450 Suport teava preincalzitor 0.00
018 4018950 Preincalzitor Danfoss FPHB 0.00
019 4035350 Electrod aprindere MB 800 0.00
020 4035330 Duza aer D.21 0.00
020 4035340 Duza aer D.24 0.00
021 4035290 G/cap 0.00
022 4035270 Tubo fiamma 0.00
023 1077850 Tun de ardere 0.00
024 1077770 Flansa suport arzator 0.00
025 1080700 Flansa atac 0.00
026 4035280 Boccaglio 0.00
027 4032190 Electrod de ionizare 0.00
028 1082300 Cablu electrod 4/6 L460 0.00
029 1080680 Cablu transformator 0.00
030 4034710 Filtu de zgomot FC 72122 0.00
031 1107240 Echipament suport 0.00
032 4034350 Conector 0.00
033 4034340 Conector 0.00
034 4033330 Baza Satronic S98-9 0.00
035 4033320 Echipament Satronic TF 804 0.00
036 1069620 Cablu motor 0.00
037 4035020 Cuplaj pompa combustibil 0.00
038 1069220 Racord flexibil L=1000 0.00
039 1001190 Niplu MM 3/8" 0.00
040 1069640 Cablu valva 0.00
041 4703890 Cablu rezistenta preincalzitor L=410 0.00
