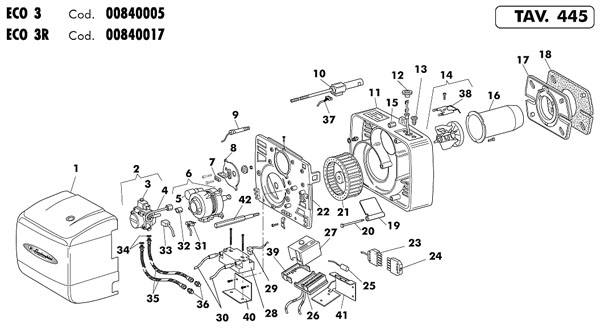

Desen explodat Arzator pe motorina ECO 3 - Pagina 1 | |||
|---|---|---|---|
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
| 001 | 1129440 | Capac silentios | 0.00 |
| 002 | 4033040 | Pompa Danfoss | 0.00 |
| 002 | 4017780 | Pompa Suntec AS 47B 1537-1-PRESA | 0.00 |
| 003 | 4018700 | Bobina electrovalva | 0.00 |
| 003 | 4034730 | Bobina Danfoss 071N0010 | 0.00 |
| 004 | 1100760 | Tub alimentare Danfoss | 0.00 |
| 004 | 1100830 | Tub alimentare Suntec | 0.00 |
| 005 | 4035130 | Condensator 4MF AEG (881.068124) | 0.00 |
| 006 | 1100880 | Motor 100W 220-240V 50/60Hz | 0.00 |
| 007 | 1077800 | Indice de referinta | 0.00 |
| 008 | 1077760 | Flansa linie jigler | 0.00 |
| 008 | 1084760 | Flansa linie jigler | 0.00 |
| 009 | 4012341 | Fotorezistenta | 0.00 |
| 010 | 1085570 | G/Suport jigler | 0.00 |
| 010 | 1092560 | G/Preincalzitor Danfoss FPHB 030 N2028 | 0.00 |
| 011 | 1110040 | Corp arzator | 0.00 |
| 012 | 1078030 | Buton reglare aer | 0.00 |
| 013 | 1078040 | Surub reglare aer | 0.00 |
| 014 | 4032020 | G/Deflector cu electrozi (MEKU 192027) | 0.00 |
| 015 | 1077920 | Piulita blocare arzator | 0.00 |
| 016 | 1077900 | Tun ardere (MEKU 191174) | 0.00 |
| 017 | 1077770 | Flansa suport arzator | 0.00 |
| 018 | 1077850 | Garnitura flansa | 0.00 |
| 019 | 1077830 | Banda atmosferica | 0.00 |
| 020 | 1111030 | Perno bandella | 0.00 |
| 021 | 4037360 | Turbina D.108X40 | 0.00 |
| 022 | 1111020 | Componente placa | 0.00 |
| 023 | 4034220 | Conector 7 poli 93.931.5153.0 N/M | 0.00 |
| 024 | 4032100 | Conector tata 7P 939325053 (20230) | 0.00 |
| 025 | 4034710 | Filtru zgomot FC 72122 | 0.00 |
| 026 | 4015510 | Soclu automat ardere | 0.00 |
| 027 | 4035230 | Bloc Landis LOA 24 171B27 | 0.00 |
| 027 | 4042060 | Bloc Landis LMO14.111C2LJ | 0.00 |
| 028 | 4039870 | Transformator Danfoss EBI 052F0030 | 0.00 |
| 029 | 1112050 | Cablu transformator | 0.00 |
| 030 | 1118160 | Cablu electrod | 0.00 |
| 031 | 1069620 | Cablu motor | 0.00 |
| 032 | 4035140 | Cuplaj pompa motorina AEG | 0.00 |
| 033 | 1069640 | Cablu pompa | 0.00 |
| 034 | 1001290 | Saiba 1/4" | 0.00 |
| 035 | 1069220 | Racord flexibil L=1000 | 0.00 |
| 036 | 1001190 | Niplu MM 3/8" | 0.00 |
| 037 | 4703890 | Cablu pentru rezistenta preincalzitor L=410 | 0.00 |
| 038 | 4031070 | Electrozi aprindere | 0.00 |
| 039 | 4031950 | Soclu automat ardere Landis AGK66 | 0.00 |
| 040 | 1118150 | Suport transformator | 0.00 |
| 041 | 1077860 | Suport echipament | 0.00 |
| 042 | 1110070 | Pin placa de montaj | 0.00 |
