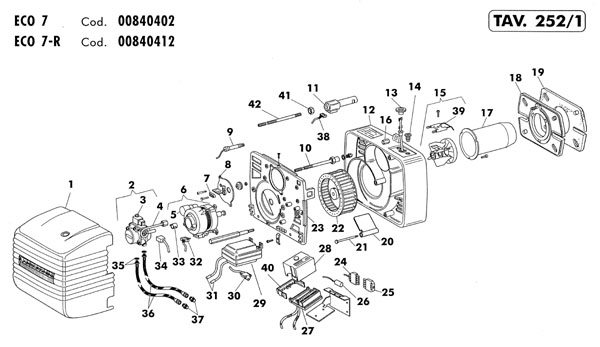

Desen explodat Arzator pe motorina ECO 7R - Pagina 1
Desen explodat ECO 7R 252-1
Poz. Cod piesa Denumire piesa Lei fara TVA
001 1080860 Capac 0.00
002 4017780 Pompa Suntec AS 47B 1537-1-PRESA 0.00
002 4033040 Pompa Danfoss 0.00
003 4034730 Bobina Danfoss 071N0010 0.00
004 1086970 Teaca flux 0.00
004 1080950 Tub alimentare 0.00
005 4035130 Condensator 4MF AEG (881.068124) 0.00
006 1100880 Motor 100W 220-240V 50/60Hz 0.00
007 1077800 Indice de referinta 0.00
008 1080870 Flansa linie jigler 0.00
008 1085790 Flansa linie jigler 0.00
009 4012341 Fotorezistenta 0.00
010 1085670 G/Suport jigler 0.00
011 4018950 Preincalzitor Danfoss FPHB 030N1202 (204540) 0.00
012 1110060 Corp arzator 0.00
013 1078030 Buton reglare aer 0.00
014 1078040 Surub reglare aer 0.00
015 4032260 G/Deflector cu electrod 0.00
017 1080990 Tun de ardere 0.00
018 1086800 Flansa suport arzator 0.00
019 1087080 Garnitura izolanta 0.00
020 1080900 Banda atmosferica 0.00
021 1080910 Perno bandella 0.00
022 4035160 Turbina D.120 x 42 0.00
023 1080820 Componente placa 0.00
024 4034220 Conector 7 poli 93.931.5153.0 N/M 0.00
025 4032100 Conector tata 7P 939325053 (20230) 0.00
026 4034710 Filtru zgomot FC 72122 0.00
027 4015510 Soclu automat ardere 0.00
028 4035230 Bloc Landis LOA 24 171B27 0.00
029 4033080 Transformator 0.00
030 1080680 Cablu transformator 0.00
031 1082300 Cablu electrod 4/6 L=430 0.00
032 1069620 Cablu motor 0.00
033 4035140 Cuplaj pompa motorina AEG 0.00
034 1069640 Cablu pompa 0.00
035 1001290 Saiba 1/4" 0.00
036 1069220 Racord flexibil L=1000 0.00
037 1001190 Niplu MM 3/8" 0.00
038 4703890 Cablu pentru rezistenta preincalzitor L=410 0.00
039 4031070 Electrozi aprindere 0.00
040 4031950 Soclu automat ardere Landis AGK66 0.00
041 1077970 Piulita suport jigler 0.00
042 1081060 Suport jigler 0.00

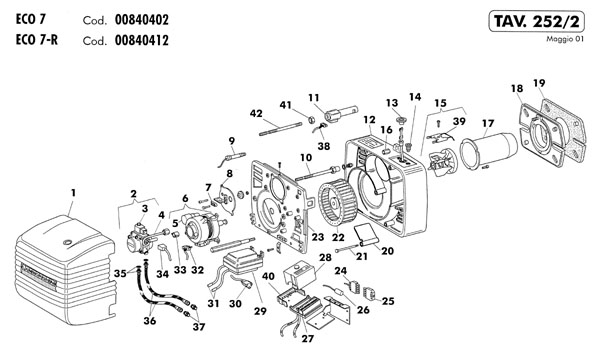

Desen explodat ARZATOR MOTORINA ECO 7R 87KW - Pagina 2
Desen explodat ECO 7R 252-2
Poz. Cod piesa Denumire piesa Lei fara TVA
001 1080860 Capac 0.00
002 4017780 Pompa Suntec AS 47B 1537-1-PRESA 0.00
002 4033040 Pompa Danfoss 0.00
003 4034730 Bobina Danfoss 071N0010 0.00
004 1086970 Teaca flux 0.00
004 1080950 Tub alimentare 0.00
005 4035130 Condensator 4MF AEG (881.068124) 0.00
006 1100880 Motor 100W 220-240V 50/60Hz 0.00
007 1077800 Indice de referinta 0.00
008 1080870 Flansa linie jigler 0.00
008 1085790 Flansa linie jigler 0.00
009 4012341 Fotorezistenta 0.00
010 1085670 G/Suport jigler 0.00
011 4018950 Preincalzitor Danfoss FPHB 030N1202 (204540) 0.00
012 1110060 Corp arzator 0.00
013 1078030 Buton reglare aer 0.00
014 1078040 Surub reglare aer 0.00
015 4032260 G/Deflector cu electrod 0.00
017 1080990 Tun de ardere 0.00
018 1086800 Flansa suport arzator 0.00
019 1087080 Garnitura izolanta 0.00
020 1080900 Banda atmosferica 0.00
021 1080910 Perno bandella 0.00
022 4035170 Ventilator D.127X50 0.00
023 1080820 Componente placa 0.00
024 4034220 Conector 7 poli 93.931.5153.0 N/M 0.00
025 4032100 Conector tata 7P 939325053 (20230) 0.00
026 4034710 Filtru zgomot FC 72122 0.00
027 4015510 Soclu automat ardere 0.00
028 4035230 Bloc Landis LOA 24 171B27 0.00
029 4033080 Transformator 0.00
030 1080680 Cablu transformator 0.00
031 1082300 Cablu electrod 4/6 L=430 0.00
032 1069620 Cablu motor 0.00
033 4035140 Cuplaj pompa motorina AEG 0.00
034 1069640 Cablu pompa 0.00
035 1001290 Saiba 1/4" 0.00
036 1069220 Racord flexibil L=1000 0.00
037 1001190 Niplu MM 3/8" 0.00
038 4703890 Cablu pentru rezistenta preincalzitor L=410 0.00
039 4031070 Electrozi aprindere 0.00
040 4031950 Soclu automat ardere Landis AGK66 0.00
041 1077970 Piulita suport jigler 0.00
042 1081060 Suport jigler 0.00
