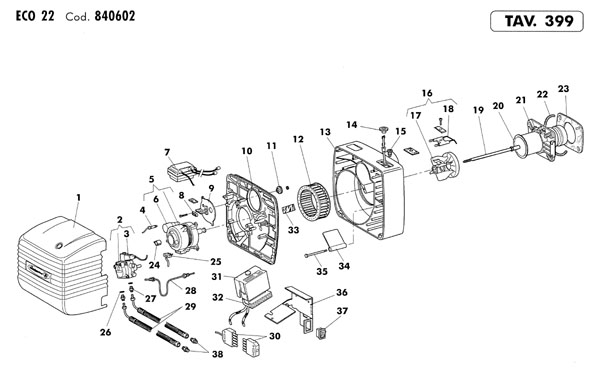

Desen explodat Arzator motorina ECO 22 - Pagina 1 | |||
|---|---|---|---|
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
| 001 | 1090630 | Capac silentios | 0.00 |
| 002 | 4017780 | Pompa Suntec AS 47B 1537-1-PRESA | 0.00 |
| 003 | 4018700 | Bobina electrovalva | 0.00 |
| 004 | 4012341 | Fotorezistenta | 0.00 |
| 005 | 1109610 | Motor 250 W 220-240V 50/60Hz | 0.00 |
| 006 | 4036150 | Condensator 8 MF | 0.00 |
| 007 | 4033350 | Transformator aprindere G1035/4-220-230V/50Hz | 0.00 |
| 008 | 1077800 | Indice de referinta | 0.00 |
| 009 | 1086950 | Flansa linie jigler | 0.00 |
| 010 | 1111120 | Componente placa | 0.00 |
| 011 | 1077870 | Angrenaj | 0.00 |
| 012 | 4033090 | Turbina D.160 x 75 | 0.00 |
| 013 | 1086990 | Corp arzator | 0.00 |
| 014 | 1078030 | Buton reglare aer | 0.00 |
| 015 | 1078040 | Surub reglare aer | 0.00 |
| 016 | 4033210 | G/Deflector cu electrod | 0.00 |
| 018 | 4031070 | Electrozi aprindere | 0.00 |
| 019 | 01087010 | SUPPORTO GICLEUR | 0.00 |
| 020 | 1086960 | Tun de ardere | 0.00 |
| 021 | 1087550 | Flansa arzator | 0.00 |
| 022 | 1087570 | Izolant cablu | 0.00 |
| 023 | 1087560 | Garnitura izolanta | 0.00 |
| 024 | 4035140 | Cuplaj pompa motorina AEG | 0.00 |
| 025 | 1087610 | Cablu alimentare motor | 0.00 |
| 026 | 1001290 | Saiba 1/4" | 0.00 |
| 027 | 1058020 | Niplu 1/4'' | 0.00 |
| 028 | 1087100 | Tub alimentare | 0.00 |
| 029 | 1069220 | Racord flexibil L=1000 | 0.00 |
| 030 | 1087580 | G/Alimentare | 0.00 |
| 031 | 4035230 | Bloc Landis LOA 24 171B27 | 0.00 |
| 032 | 4015510 | Soclu automat ardere | 0.00 |
| 033 | 1087470 | Vizor | 0.00 |
| 034 | 1087200 | Banda atmosferica | 0.00 |
| 035 | 1087250 | Perno bandella | 0.00 |
| 036 | 1090620 | Suport echipament | 0.00 |
| 037 | 4033860 | Intrerupator luminos | 0.00 |
| 038 | 1001190 | Niplu MM 3/8" | 0.00 |
