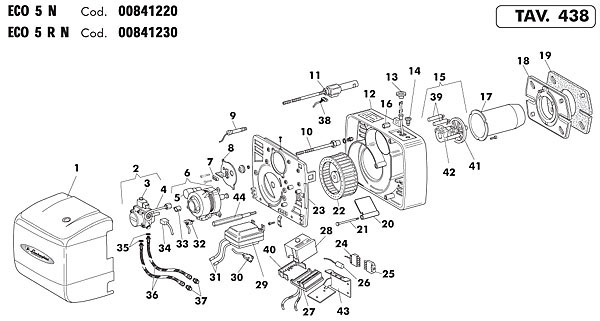

Desen explodat Arzator pe motorina ECO 5RN - Pagina 1 | |||
|---|---|---|---|
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
| 001 | 1129450 | Capac silentios | 0.00 |
| 002 | 4033040 | Pompa Danfoss | 0.00 |
| 002 | 4017780 | Pompa Suntec AS 47B 1537-1-PRESA | 0.00 |
| 003 | 4018700 | Bobina electrovalva | 0.00 |
| 003 | 4034730 | Bobina Danfoss 071N0010 | 0.00 |
| 004 | 1086970 | Teaca flux | 0.00 |
| 004 | 1080950 | Tub alimentare | 0.00 |
| 005 | 4035130 | Condensator 4MF AEG (881.068124) | 0.00 |
| 006 | 1100880 | Motor 100W 220-240V 50/60Hz | 0.00 |
| 007 | 1077800 | Indice de referinta | 0.00 |
| 008 | 1080870 | Flansa linie jigler | 0.00 |
| 008 | 1085790 | Flansa linie jigler | 0.00 |
| 009 | 4012341 | Fotorezistenta | 0.00 |
| 010 | 1085660 | G/Suport jigler | 0.00 |
| 011 | 1102310 | G/Preincalzitor Danfoss FPHB 030N2046 | 0.00 |
| 012 | 1110050 | Corp arzator | 0.00 |
| 013 | 1078030 | Buton reglare aer | 0.00 |
| 014 | 1078040 | Surub reglare aer | 0.00 |
| 015 | 8019390 | G/Deflector cu electrozi | 0.00 |
| 016 | 1077920 | Piulita blocare arzator | 0.00 |
| 017 | 1077900 | Tun ardere (MEKU 191174) | 0.00 |
| 018 | 1077770 | Flansa suport arzator | 0.00 |
| 019 | 1077850 | Garnitura flansa | 0.00 |
| 020 | 1080900 | Banda atmosferica | 0.00 |
| 021 | 1111050 | Perno bandella | 0.00 |
| 022 | 4035170 | Turbina D.127X50 | 0.00 |
| 023 | 1120440 | Componente placa | 0.00 |
| 024 | 4034220 | Conector 7 poli 93.931.5153.0 N/M | 0.00 |
| 025 | 4032100 | Conector tata 7P 939325053 (20230) | 0.00 |
| 026 | 4034710 | Filtru zgomot FC 72122 | 0.00 |
| 027 | 4015510 | Soclu automat ardere | 0.00 |
| 027 | 4035230 | Bloc Landis LOA 24 171B27 | 0.00 |
| 028 | 4042060 | Bloc Landis LMO14.111C2LJ | 0.00 |
| 029 | 4033080 | Transformator | 0.00 |
| 030 | 1080680 | Cablu transformator | 0.00 |
| 031 | 1106940 | Cablu electrod | 0.00 |
| 032 | 1069620 | Cablu motor | 0.00 |
| 033 | 4035140 | Cuplaj pompa motorina AEG | 0.00 |
| 034 | 1069640 | Cablu pompa | 0.00 |
| 035 | 1001290 | Saiba 1/4" | 0.00 |
| 036 | 1069220 | Racord flexibil L=1000 | 0.00 |
| 037 | 1001190 | Niplu MM 3/8" | 0.00 |
| 038 | 4703890 | Cablu pentru rezistenta preincalzitor L=410 | 0.00 |
| 039 | 4040310 | Electrod aprindere | 0.00 |
| 040 | 4031950 | Soclu automat ardere Landis AGK66 | 0.00 |
| 041 | 1120390 | Deflector | 0.00 |
| 042 | 1120450 | Suport electrod | 0.00 |
| 043 | 1077860 | Suport echipament | 0.00 |
| 044 | 1110070 | Pin placa de montaj | 0.00 |
