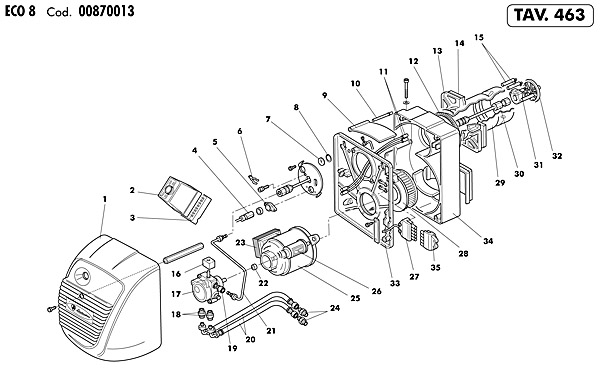

Desen explodat Arzator pe motorina ECO 8 - Pagina 1 | |||
|---|---|---|---|
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
| 001 | 1110100 | Capac silentios | 0.00 |
| 002 | 4042060 | Bloc Landis LMO14.111C2LJ | 0.00 |
| 003 | 4015510 | Soclu automat ardere | 0.00 |
| 004 | 4036440 | Fotorezistenta Landis QRB1A(997792) | 0.00 |
| 005 | 4036420 | Suport fotorezistenta 4036440 | 0.00 |
| 006 | 1118650 | Racord flexibil | 0.00 |
| 007 | 1118710 | Vizor | 0.00 |
| 008 | 3001350 | Inel Seeger ZI 17 (EX 403641) | 0.00 |
| 009 | 1118530 | Banda atmosferica | 0.00 |
| 010 | 1124820 | Perno bandella | 0.00 |
| 011 | 1123350 | Cablu electrod aprindere | 0.00 |
| 012 | 1118590 | Garnitura tun ardere | 0.00 |
| 013 | 1118670 | Flansa | 0.00 |
| 014 | 1118580 | Garnitura izolatoare | 0.00 |
| 015 | 4040310 | Electrod aprindere | 0.00 |
| 016 | 4034730 | Bobina Danfoss 071N0010 | 0.00 |
| 016 | 4018700 | Bobina electrovalva | 0.00 |
| 017 | 4041930 | Pompa Danfoss BFP21L3L2 - 071N04107 | 0.00 |
| 017 | 4036480 | Pompa Suntec AS47C 1538 | 0.00 |
| 018 | 1058020 | Niplu 1/4'' | 0.00 |
| 019 | 1118750 | Racord tub alimentare | 0.00 |
| 020 | 1069220 | Racord flexibil L=1000 | 0.00 |
| 021 | 1118640 | Teava tur (EX 403649) | 0.00 |
| 022 | 4036460 | Cuplaj motor (203103) | 0.00 |
| 023 | 4039870 | Transformator Danfoss EBI 052F0030 | 0.00 |
| 024 | 1001190 | Niplu MM 3/8" | 0.00 |
| 025 | 1118570 | Motor 100 W (EX 403647) | 0.00 |
| 026 | 4035130 | Condensator 4MF AEG (881.068124) | 0.00 |
| 027 | 4034220 | Conector 7 poli 93.931.5153.0 N/M | 0.00 |
| 028 | 4036360 | Turbina D.133 (201559) | 0.00 |
| 029 | 1118600 | Boccaglio | 0.00 |
| 030 | 1118740 | Suport jigler | 0.00 |
| 031 | 1118760 | Suport electrod | 0.00 |
| 032 | 1118610 | Disc deflector | 0.00 |
| 033 | 1123120 | Surub capac | 0.00 |
| 034 | 1124810 | Corp arzator | 0.00 |
| 035 | 4032100 | Conector tata 7P 939325053 (20230) | 0.00 |
