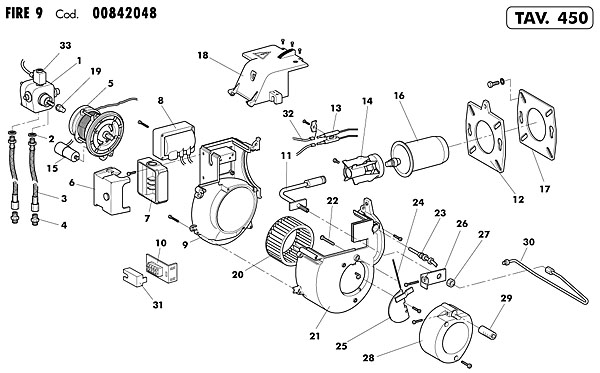

Desen explodat Arzator pe motorina FIRE 9 - Pagina 1 | |||
|---|---|---|---|
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
| 001 | 4034180 | Pompa Danfoss BFP 11 R 3 R | 0.00 |
| 002 | 1001290 | Saiba 1/4" | 0.00 |
| 003 | 1078090 | Racord flexibil | 0.00 |
| 004 | 1001190 | Niplu MM 3/8" | 0.00 |
| 005 | 1126060 | Motor Simel | 0.00 |
| 005 | 1100890 | Motor | 0.00 |
| 006 | 4042060 | Bloc Landis LMO14.111C2 | 0.00 |
| 007 | 4015510 | Soclu automat ardere | 0.00 |
| 007 | 8017120 | G/baza (FIRE 1) | 0.00 |
| 008 | 4036120 | Transformator FIDA compact 8/20 CM-P | 0.00 |
| 009 | 1112060 | Corp motor X. trans. Danfoss | 0.00 |
| 010 | 4018100 | Terminal 6 poli | 0.00 |
| 011 | 1126140 | G/suport gicleur | 0.00 |
| 012 | 1104070 | Flansa conectare cazan | 0.00 |
| 013 | 4031070 | Electrod aprindere | 0.00 |
| 014 | 4033640 | G/Deflector electrozi 93116 | 0.00 |
| 015 | 4041840 | Condensator motor Simel | 0.00 |
| 015 | 4035130 | Condensator | 0.00 |
| 016 | 1092060 | Boccaglio FIRE 9 (MEKU 194130) | 0.00 |
| 017 | 1092280 | Garnitura flansa | 0.00 |
| 018 | 1091530 | Capac superior | 0.00 |
| 019 | 4041830 | Cuplaj motor Simel | 0.00 |
| 019 | 4035140 | Cuplaj pompa AEG | 0.00 |
| 020 | 4034090 | Ventilator D.124X53 | 0.00 |
| 021 | 1107960 | Semiadmisie aer | 0.00 |
| 022 | 2272580 | Surub M 5 x 40 | 0.00 |
| 023 | 4034050 | Fotorezistenta QRB1 Landis | 0.00 |
| 024 | 1091680 | Curea arbore | 0.00 |
| 025 | 1091670 | Curea aer | 0.00 |
| 026 | 1091610 | Index cap de ajustare | 0.00 |
| 027 | 1077970 | Dado suport gicleur | 0.00 |
| 028 | 1091540 | Coperchio asp. aria | 0.00 |
| 029 | 1091600 | Buton reglare aer | 0.00 |
| 030 | 1092610 | Teaca flux | 0.00 |
| 031 | 1094280 | Capac terminal | 0.00 |
| 032 | 1094410 | Cablu electrod | 0.00 |
| 033 | 4034730 | Bobina Danfoss 071N0010 | 0.00 |
