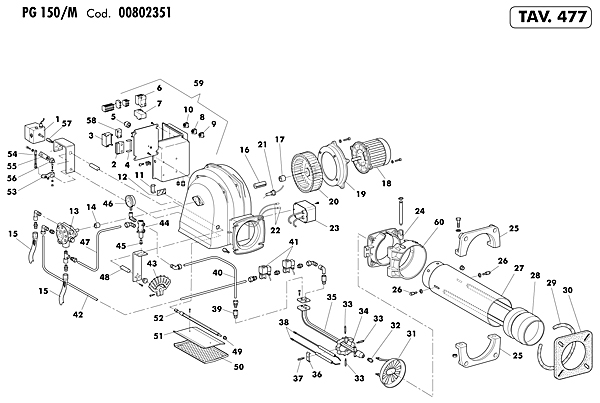

Desen explodat Arzator pe motorina PG 150/M - Pagina 1 | |||
|---|---|---|---|
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
| 001 | 4035490 | Servocomanda Landis SQL 33.03 | 0.00 |
| 002 | 4015510 | Soclu automat ardere | 0.00 |
| 003 | 4040980 | Bloc Landis LMO 44.255.C2 | 0.00 |
| 004 | 4031950 | Soclu automat ardere Siemens AGK66 | 0.00 |
| 005 | 4034720 | Filtru antiparazitare FLC 560501 | 0.00 |
| 006 | 4703370 | Contactor CL00A310T6 230V/50-60Hz | 0.00 |
| 007 | 4703130 | Releu termic RT1L 4-6.3 A | 0.00 |
| 008 | 4035530 | Semnal luminos | 0.00 |
| 009 | 4033860 | Comutator luminos bipolar A41831E00 | 0.00 |
| 010 | 4033970 | Intrerupator reset R 334 | 0.00 |
| 011 | 1065680 | Molla vetrino | 0.00 |
| 012 | 1010380 | Glisiera | 0.00 |
| 013 | 4013280 | Pompa Suntec E 6 NA 1001 | 0.00 |
| 014 | 1053320 | Nuca cuplaj pompa | 0.00 |
| 015 | 1098730 | Furtun flexibil L=1500 | 0.00 |
| 016 | 1007642 | Cuplaj pompa | 0.00 |
| 017 | 1010111 | Nuca cuplaj pompa | 0.00 |
| 018 | 1102960 | Motore 2.9 kW 230/400V/50Hz | 0.00 |
| 019 | 1112440 | Flansa motor | 0.00 |
| 020 | 4019520 | Turbina | 0.00 |
| 021 | 8014130 | Fotorezistenta | 0.00 |
| 022 | 1073580 | Cablu electrozi | 0.00 |
| 023 | 1082840 | Transformator 7333 2x5kV/30MA 230V/50Hz | 0.00 |
| 024 | 1112260 | Flansa balama | 0.00 |
| 025 | 1075070 | Semiflansa | 0.00 |
| 026 | 1095930 | Reglaj boccaglio | 0.00 |
| 027 | 1102930 | Tub conveior | 0.00 |
| 028 | 1102940 | Tun de ardere | 0.00 |
| 029 | 1007820 | Snur izolant | 0.00 |
| 030 | 1007881 | Garnitura izolanta | 0.00 |
| 031 | 1111390 | Deflector | 0.00 |
| 032 | 4038120 | Jigler | 0.00 |
| 033 | 1102980 | Distantiator | 0.00 |
| 034 | 1058790 | Suport electrod | 0.00 |
| 035 | 1111400 | G/Suport jigler | 0.00 |
| 036 | 1055440 | Placa electrod | 0.00 |
| 037 | 1102990 | Distantiere fixare electrozi | 0.00 |
| 038 | 4013381 | Electrod de aprindere | 0.00 |
| 039 | 4035560 | Valva antiretur | 0.00 |
| 040 | 1111190 | Regulator retur | 0.00 |
| 041 | 4035500 | Electrovalva Sirai L159 C05-Z130A 230V/50Hz | 0.00 |
| 042 | 1111220 | Teava livrare | 0.00 |
| 043 | 8014950 | G/Controller comanda | 0.00 |
| 044 | 4035480 | Regulator Safag BPP-HR-4-PRO | 0.00 |
| 045 | 3000370 | Racord | 0.00 |
| 046 | 4035620 | Manometru | 0.00 |
| 047 | 1111200 | Tub regulator | 0.00 |
| 048 | 1111270 | Arbore servomotor | 0.00 |
| 049 | 1111240 | Boccola | 0.00 |
| 050 | 1068930 | Grila | 0.00 |
| 051 | 1078970 | Clapeta aer | 0.00 |
| 052 | 1111180 | Arbore clapeta | 0.00 |
| 053 | 1113420 | Reglare clapeta | 0.00 |
| 054 | 4035680 | Cuplaj | 0.00 |
| 055 | 1105660 | Ax de prindere | 0.00 |
| 056 | 4035610 | Boccola | 0.00 |
| 057 | 1105650 | Cuplaj | 0.00 |
| 058 | 4040690 | Releu de timp | 0.00 |
| 059 | 8012840 | G/Placa electrica | 0.00 |
| 059 | 1113150 | Flansa balama | 0.00 |
