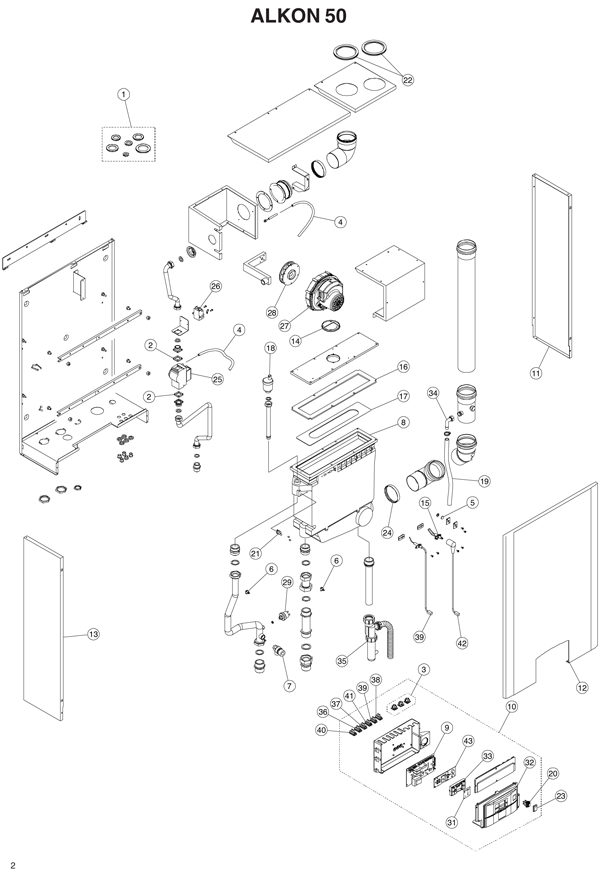

Desen explodat Alkon 50 - Pagina 1
Poz. Cod piesa Denumire piesa Lei fara TVA
01 95000023 Kit garnituri 0.00
02 95000426 Garnitura valva gaz (10 bucati) 0.00
03 95000610 Presetupa (6 bucati) 0.00
04 95000657 Tub silicon 4x8 0.00
05 95000679 Vizor sticla 0.00
06 95000680 Contact senzor incalzire 0.00
07 95000781 Valva de siguranta 6 bar 0.00
08 95000783 Schimbator Alkon 50/70 kW 0.00
09 95000784 Placa electronica Alkon 50 0.00
10 95100081 Panou complet Alkon 50 0.00
11 95212123 Panou lateral Dx 0.00
12 95212125 Panou frontal 0.00
13 95212658 Panou lateral Sx 0.00
14 95250489 Garnitura ventilator 0.00
15 95251384 Electrod de aprindere 0.00
16 95251500 Garnitura arzator 0.00
17 95251502 Arzator 0.00
18 95260588 Valva automata aerisire 3/4" 0.00
19 95260773 Teava PVC condens 0.00
20 95261102 Comutator 0.00
21 95261494 Termostat de siguranta 95oC 0.00
22 95261988 Garnitura teava Ø 80 mm (2 bucati) 0.00
23 95261999 Protectie comutator 0.00
24 95262087 Garnitura dubla Ø 80 mm 0.00
25 95262128 Vana gaz Dungs 0.00
26 95262185 Transformator de aprindere 0.00
27 95262193 Ventilator Alkon 50 0.00
28 95262451 Mixer Alkon 50 0.00
29 95262604 Presostat pierderi apa 0.00
30 95262763 Circulator PWM 25-80 130 12H 0.00
31 95310239 Ecran display 0.00
32 95310726 Panou imprimat 0.00
33 95310742 Tastatura imprimata 0.00
34 95361242 Portfurtun eliminare condens 0.00
35 95371660 Sifon condens 0.00
36 95600271 Cablu VM R - TL 0.00
37 95600272 Cablu SR - SRR 0.00
38 95600290 Cablu alimentare 230V 0.00
39 95600316 Cablu E. RIL. 0.00
40 95600376 Cablu DK Alkon 50 0.00
41 95600377 Cablu T.ACC.-VG-VM(A) Alkon 50 0.00
42 95611192 Cablu electrod aprindere 0.00
43 95630030 Placa panou comanda 0.00
